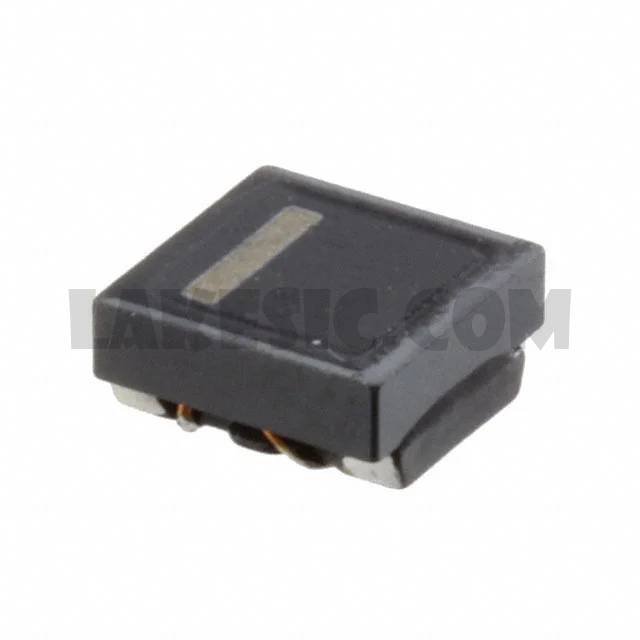

DLW5BTM101TQ2L


DLW5BTM101TQ2L

Part NumberDLW5BTM101TQ2L

Manufacturer

Description

Datasheet

Package / CaseHorizontal, 6 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

DLW5BTM101TQ2L - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package1
ManufacturerMurata Electronics North America
SeriesDLW5B
PackagingCut Tape (CT)
Part StatusActive
Filter TypePower, Signal Line
Number of Lines2
Impedance @ Frequency100 Ohms @ 100MHz
Current Rating (Max)6A
DC Resistance (DCR) (Max)13mOhm
Voltage Rating - DC50V
Voltage Rating - AC-
Operating Temperature-40°C ~ 105°C
Ratings-
Approvals-
Features-
Mounting TypeSurface Mount
Package / CaseHorizontal, 6 PC Pad
