DMC25D0UVT-7

Part NumberDMC25D0UVT-7

ManufacturerDiodes Incorporated

DescriptionMOSFET N/P-CH 25V/30V TSOT26

DatasheetDMC25D0UVT

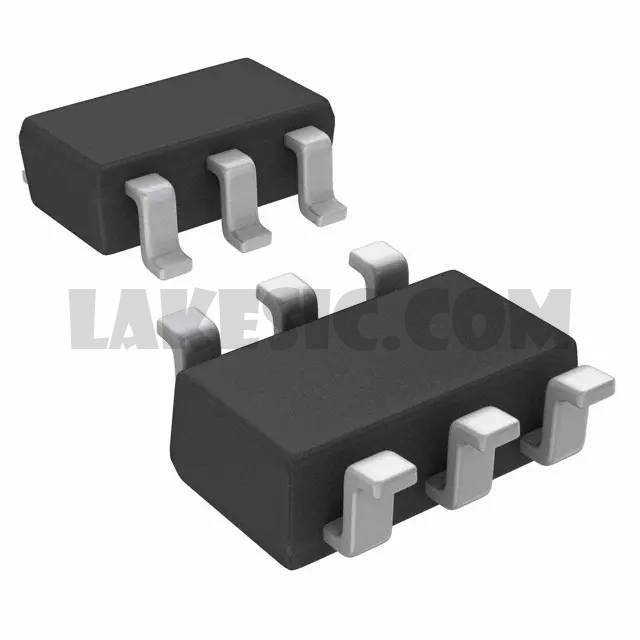

Package / CaseSOT-23-6 Thin, TSOT-23-6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel 25V, 30V 400mA, 3.2A 1.2W Surface Mount TSOT-26

To learn about the specification of DMC25D0UVT-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMC25D0UVT-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMC25D0UVT-7.
We are offering DMC25D0UVT-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMC25D0UVT-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	DMC25D0UVT
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N and P-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	25V, 30V
Current - Continuous Drain (Id) @ 25°C	400mA, 3.2A
Rds On (Max) @ Id, Vgs	4Ohm @ 400mA, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.7nC @ 8V
Input Capacitance (Ciss) (Max) @ Vds	26.2pF @ 10V
Power - Max	1.2W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Supplier Device Package	TSOT-26
