DME505010R

Part NumberDME505010R

ManufacturerPanasonic Electronic Components

DescriptionTRANS NPN/PNP 50V 0.1A SMINI6

DatasheetDME50501

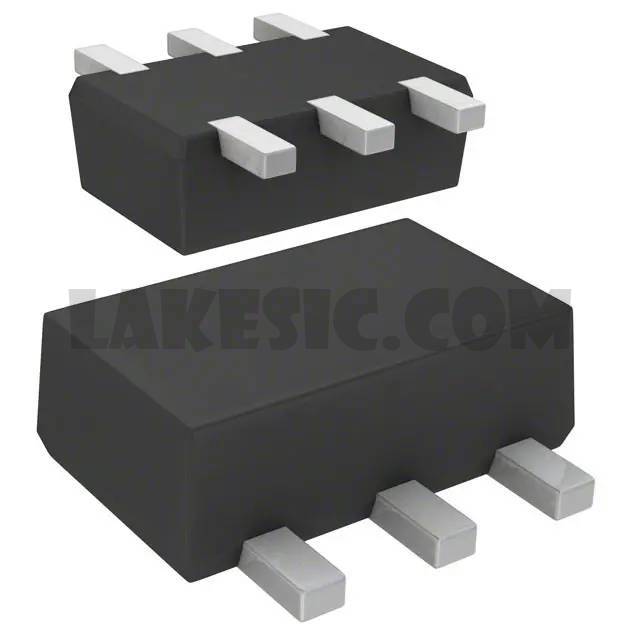

Package / Case6-SMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array NPN, PNP 50V 100mA 150MHz 150mW Surface Mount SMini6-F3-B

To learn about the specification of DME505010R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DME505010R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DME505010R.
We are offering DME505010R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DME505010R - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	DME50501
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN, PNP
Current - Collector (Ic) (Max)	100mA
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	300mV @ 10mA, 100mA / 500mV @ 10mA, 100mA
Current - Collector Cutoff (Max)	100µA
DC Current Gain (hFE) (Min) @ Ic, Vce	210 @ 2mA, 10V
Power - Max	150mW
Frequency - Transition	150MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-SMD, Flat Leads
Supplier Device Package	SMini6-F3-B
Base Part Number	DME50501
