DMG8601UFG-7

DMG8601UFG-7

Part NumberDMG8601UFG-7

ManufacturerDiodes Incorporated

DescriptionMOSFET 2N-CH 20V 6.1A DFN

DatasheetDMG8601UFG

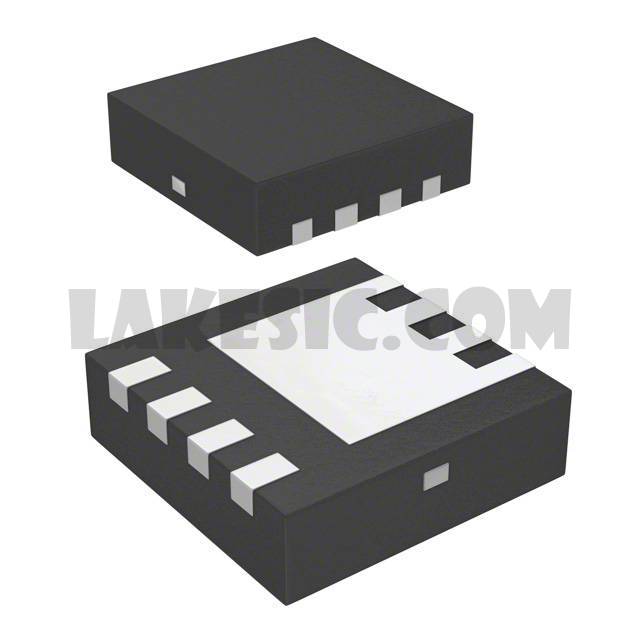

Package / Case8-PowerUDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Common Drain 20V 6.1A 920mW Surface Mount U-DFN3030-8

To learn about the specification of DMG8601UFG-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMG8601UFG-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMG8601UFG-7.
We are offering DMG8601UFG-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMG8601UFG-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	DMG8601UFG
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	6.1A
Rds On (Max) @ Id, Vgs	23mOhm @ 6.5A, 4.5V
Vgs(th) (Max) @ Id	1.05V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	143pF @ 10V
Power - Max	920mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerUDFN
Supplier Device Package	U-DFN3030-8
Base Part Number	DMG8601UFG
