DMN1016UCB6-7

DMN1016UCB6-7

Part NumberDMN1016UCB6-7

ManufacturerDiodes Incorporated

DescriptionMOSFET N-CH 12V 5.5A U-WLB1510-6

DatasheetDMN1016UCB6

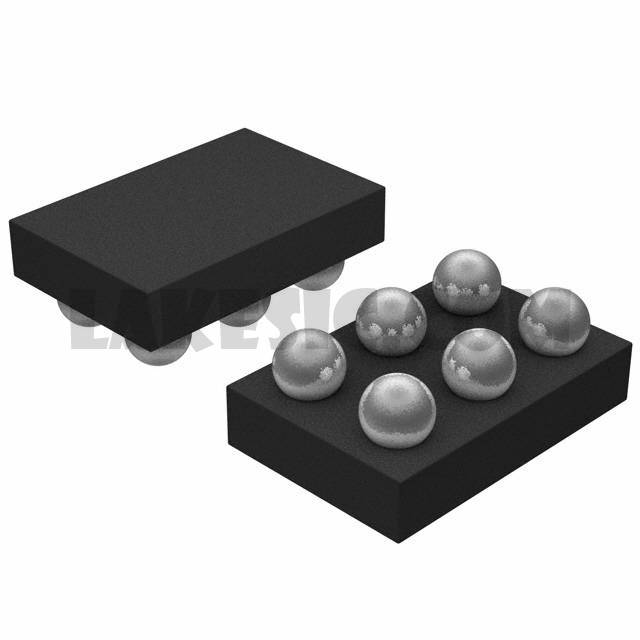

Package / Case6-UFBGA, WLBGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 12V 5.5A (Ta) 920mW (Ta) Surface Mount U-WLB1510-6

To learn about the specification of DMN1016UCB6-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN1016UCB6-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN1016UCB6-7.
We are offering DMN1016UCB6-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN1016UCB6-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMN1016UCB6
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	5.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	20mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	4.2nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	423pF @ 6V
FET Feature	-
Power Dissipation (Max)	920mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	U-WLB1510-6
Package / Case	6-UFBGA, WLBGA
