DMN1250UFEL-7

Part NumberDMN1250UFEL-7

ManufacturerDiodes Incorporated

DescriptionMOSFET BVDSS: 8V 24V U-QFN1515-1

DatasheetDMN1250UFEL

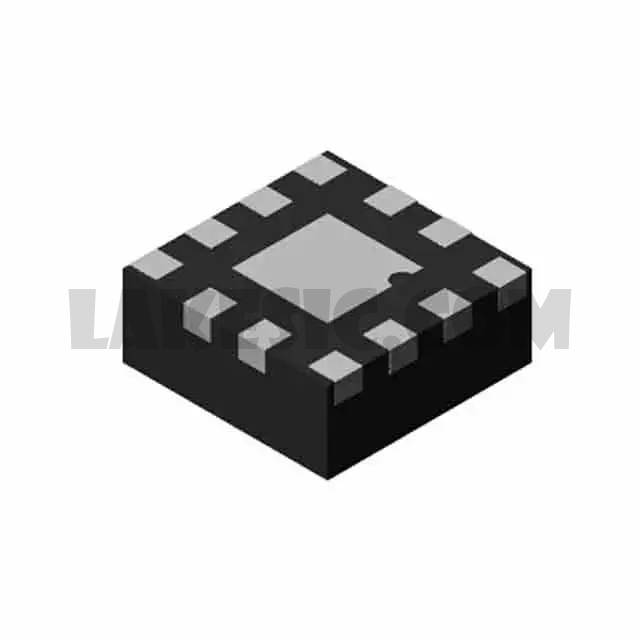

Package / Case12-UFQFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 8 N-Channel, Common Gate, Common Source 12V 2A 660mW Surface Mount U-QFN1515-12

To learn about the specification of DMN1250UFEL-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN1250UFEL-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN1250UFEL-7.
We are offering DMN1250UFEL-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN1250UFEL-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	DMN1250UFEL
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	8 N-Channel, Common Gate, Common Source
FET Feature	Standard
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	2A
Rds On (Max) @ Id, Vgs	450mOhm @ 200mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	190pF @ 6V
Power - Max	660mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	12-UFQFN Exposed Pad
Supplier Device Package	U-QFN1515-12
