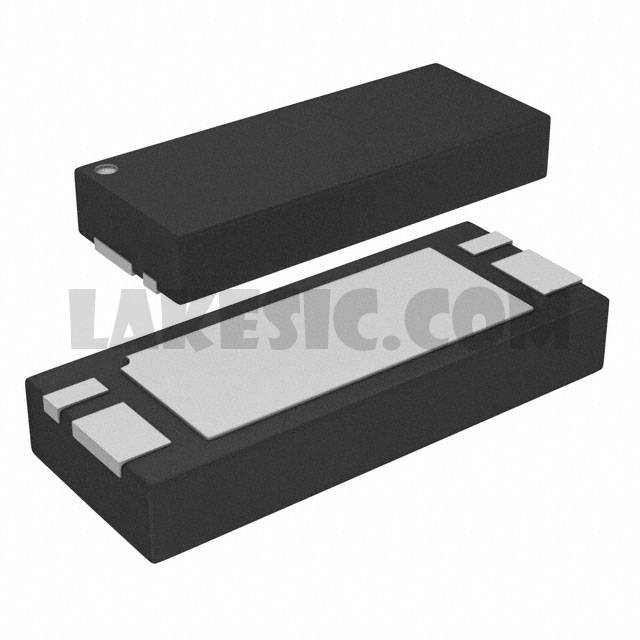

DMN2011UFX-7

Part NumberDMN2011UFX-7

ManufacturerDiodes Incorporated

DescriptionMOSFET 2N-CH 20V 12.2A DFN2050-4

DatasheetDMN2011UFX

Package / Case4-VFDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 20V 12.2A (Ta) 2.1W Surface Mount V-DFN2050-4

To learn about the specification of DMN2011UFX-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN2011UFX-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN2011UFX-7.
We are offering DMN2011UFX-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN2011UFX-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	DMN2011UFX
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	12.2A (Ta)
Rds On (Max) @ Id, Vgs	9.5mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	56nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	2248pF @ 10V
Power - Max	2.1W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-VFDFN Exposed Pad
Supplier Device Package	V-DFN2050-4
