DMN2016LHAB-7

DMN2016LHAB-7

Part NumberDMN2016LHAB-7

ManufacturerDiodes Incorporated

DescriptionMOSFET 2N-CH 20V 7.5A 6UDFN

DatasheetDMN2016LHAB

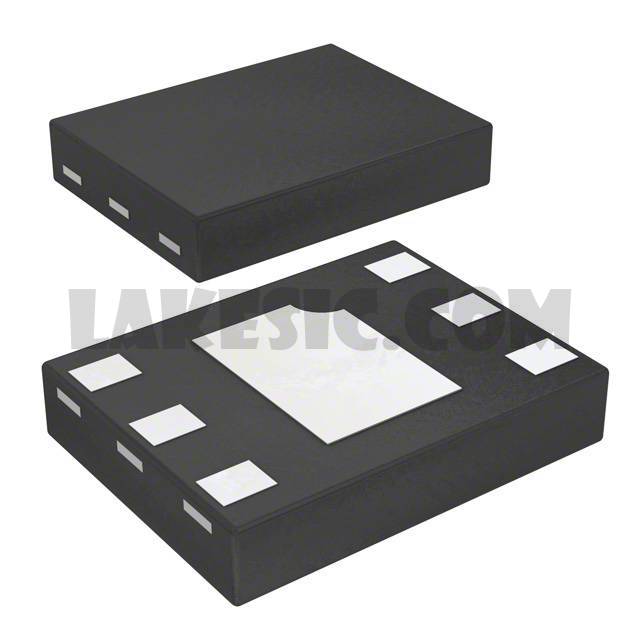

Package / Case6-UDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Common Drain 20V 7.5A 1.2W Surface Mount U-DFN2030-6

To learn about the specification of DMN2016LHAB-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN2016LHAB-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN2016LHAB-7.
We are offering DMN2016LHAB-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN2016LHAB-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	DMN2016LHAB
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	7.5A
Rds On (Max) @ Id, Vgs	15.5mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	16nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1550pF @ 10V
Power - Max	1.2W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-UDFN Exposed Pad
Supplier Device Package	U-DFN2030-6
