DMN2036UCB4-7

Part NumberDMN2036UCB4-7

ManufacturerDiodes Incorporated

DescriptionMOSFETN-CHAN 24V X2-WLB1616-4

DatasheetDMN2036UCB4

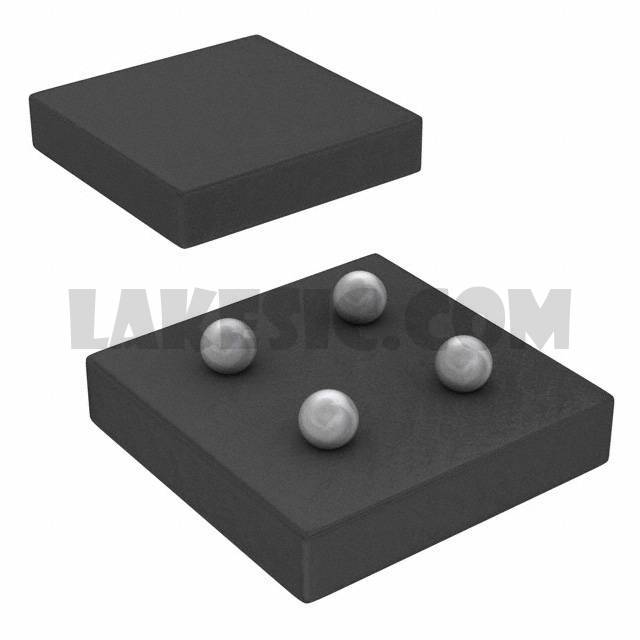

Package / Case4-XFBGA, WLBGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Common Drain 1.45W Surface Mount X2-WLB1616-4

To learn about the specification of DMN2036UCB4-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN2036UCB4-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN2036UCB4-7.
We are offering DMN2036UCB4-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN2036UCB4-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	DMN2036UCB4
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Standard
Drain to Source Voltage (Vdss)	-
Current - Continuous Drain (Id) @ 25°C	-
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	12.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	1.45W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-XFBGA, WLBGA
Supplier Device Package	X2-WLB1616-4
