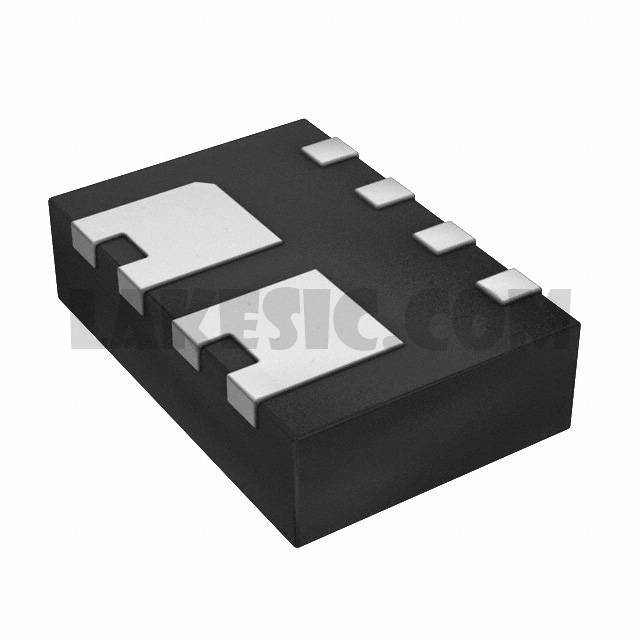

DMN3035LWN-7

Part NumberDMN3035LWN-7

ManufacturerDiodes Incorporated

DescriptionMOSFET 2N-CH 30V 5.5A 8VDFN

DatasheetDMN3035LWN

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 30V 5.5A 770mW Surface Mount V-DFN3020-8

To learn about the specification of DMN3035LWN-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN3035LWN-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN3035LWN-7.
We are offering DMN3035LWN-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN3035LWN-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	DMN3035LWN
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	5.5A
Rds On (Max) @ Id, Vgs	35mOhm @ 4.8A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	9.9nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	399pF @ 15V
Power - Max	770mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerVDFN
Supplier Device Package	V-DFN3020-8
