DMN4010LFG-7

DMN4010LFG-7

Part NumberDMN4010LFG-7

ManufacturerDiodes Incorporated

DescriptionMOSFET N-CH 40V 11.5A PWDI3333-8

DatasheetDMN4010LFG

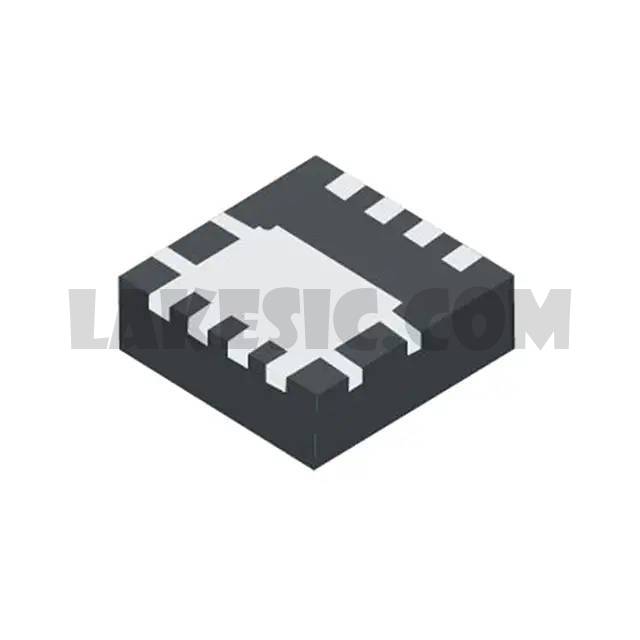

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 11.5A (Ta) 930mW (Ta) Surface Mount PowerDI3333-8

To learn about the specification of DMN4010LFG-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN4010LFG-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN4010LFG-7.
We are offering DMN4010LFG-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN4010LFG-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMN4010LFG
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	11.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	12mOhm @ 14A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	37nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1810pF @ 20V
FET Feature	-
Power Dissipation (Max)	930mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerDI3333-8
Package / Case	8-PowerVDFN
Base Part Number	DMN4010
