DMN4036LK3-13

DMN4036LK3-13

Part NumberDMN4036LK3-13

ManufacturerDiodes Incorporated

DescriptionMOSFET N-CH 40V 8.5A DPAK

DatasheetDMN4036LK3

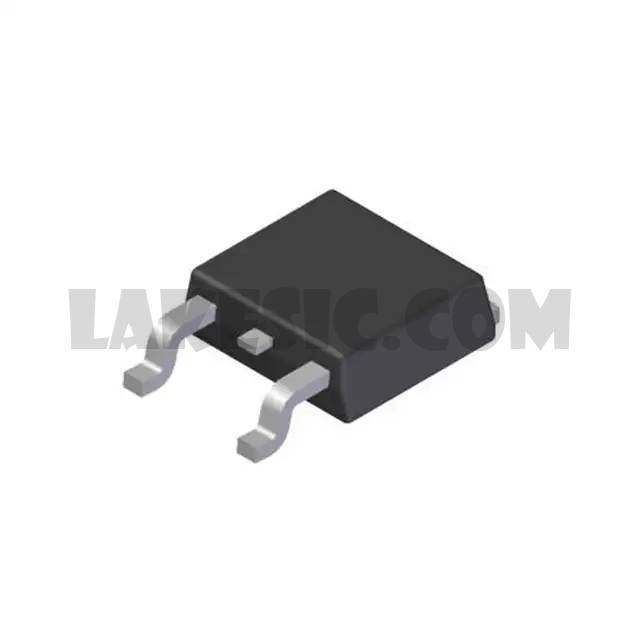

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 8.5A (Ta) 2.12W (Ta) Surface Mount TO-252-3

To learn about the specification of DMN4036LK3-13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN4036LK3-13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN4036LK3-13.
We are offering DMN4036LK3-13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN4036LK3-13 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMN4036LK3
Standard Package	2500
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	8.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	36mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	9.2nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	453pF @ 20V
FET Feature	-
Power Dissipation (Max)	2.12W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252-3
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
