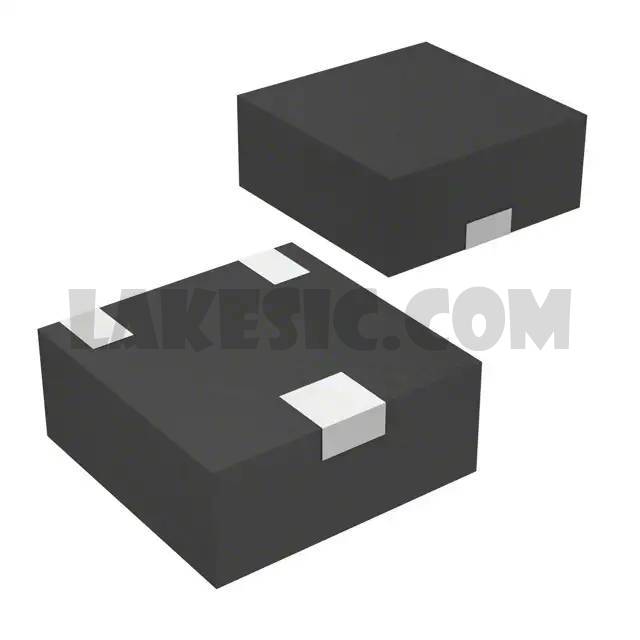

DMN62D1LFD-7

DMN62D1LFD-7

Part NumberDMN62D1LFD-7

ManufacturerDiodes Incorporated

DescriptionMOSFET N-CH 60V 0.4A DFN1212-3

DatasheetDMN62D1LFD

Package / Case3-UDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 400mA (Ta) 500mW (Ta) Surface Mount X1-DFN1212-3

To learn about the specification of DMN62D1LFD-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMN62D1LFD-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMN62D1LFD-7.
We are offering DMN62D1LFD-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMN62D1LFD-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMN62D1LFD
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	400mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4V
Rds On (Max) @ Id, Vgs	2Ohm @ 100mA, 4V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.55nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	36pF @ 25V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	X1-DFN1212-3
Package / Case	3-UDFN
