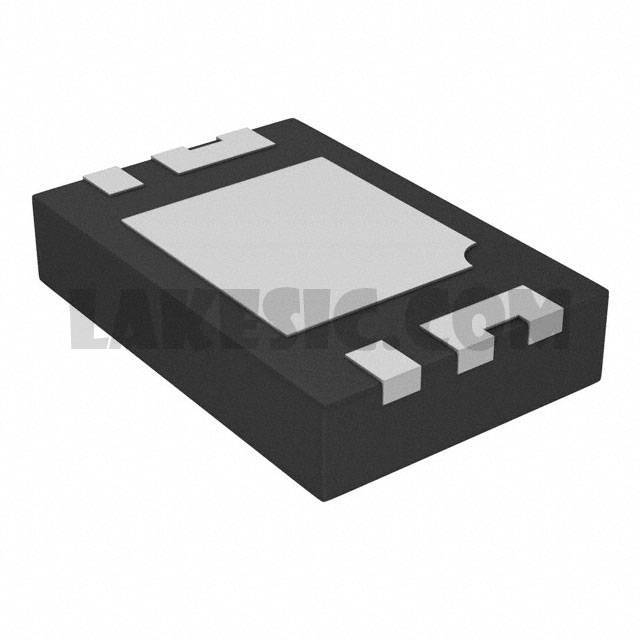

DMP2100UFU-7

DMP2100UFU-7

Part NumberDMP2100UFU-7

ManufacturerDiodes Incorporated

DescriptionMOSFET 2P-CH 20V U-DFN2030-6

DatasheetDMP2100UFU

Package / Case6-UFDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 P-Channel (Dual) 20V 5.7A 900mW Surface Mount U-DFN2030-6 (Type B)

To learn about the specification of DMP2100UFU-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMP2100UFU-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMP2100UFU-7.
We are offering DMP2100UFU-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMP2100UFU-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	DMP2100UFU
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	5.7A
Rds On (Max) @ Id, Vgs	38mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id	1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	21.4nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	906pF @ 10V
Power - Max	900mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-UFDFN Exposed Pad
Supplier Device Package	U-DFN2030-6 (Type B)
