DNA30E2200PZ-TRL

DNA30E2200PZ-TRL

Part NumberDNA30E2200PZ-TRL

ManufacturerIXYS

DescriptionDIODE GEN PURP 2.2KV 30A TO263

DatasheetDNA30E2200PZ

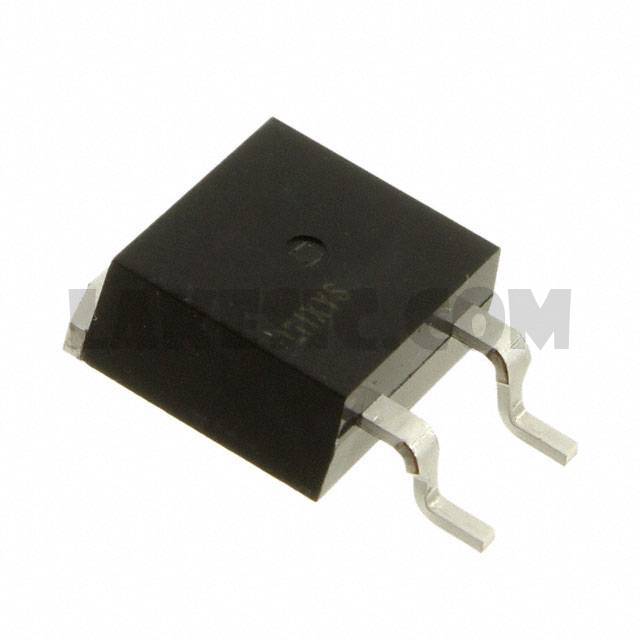

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 2200V 30A Surface Mount TO-263 (D2Pak)

To learn about the specification of DNA30E2200PZ-TRL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DNA30E2200PZ-TRL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DNA30E2200PZ-TRL.
We are offering DNA30E2200PZ-TRL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DNA30E2200PZ-TRL - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	DNA30E2200PZ
Standard Package	1
Manufacturer	IXYS
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	2200V
Current - Average Rectified (Io)	30A
Voltage - Forward (Vf) (Max) @ If	1.26V @ 30A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	40µA @ 2200V
Capacitance @ Vr, F	7pF @ 700V, 1MHz
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	TO-263 (D2Pak)
Operating Temperature - Junction	-55°C ~ 150°C
Base Part Number	DNA30E2200
