DPG20C300PN

Part NumberDPG20C300PN

ManufacturerIXYS

DescriptionDIODE ARRAY GP 300V 10A TO220FP

DatasheetDPG20C300PN

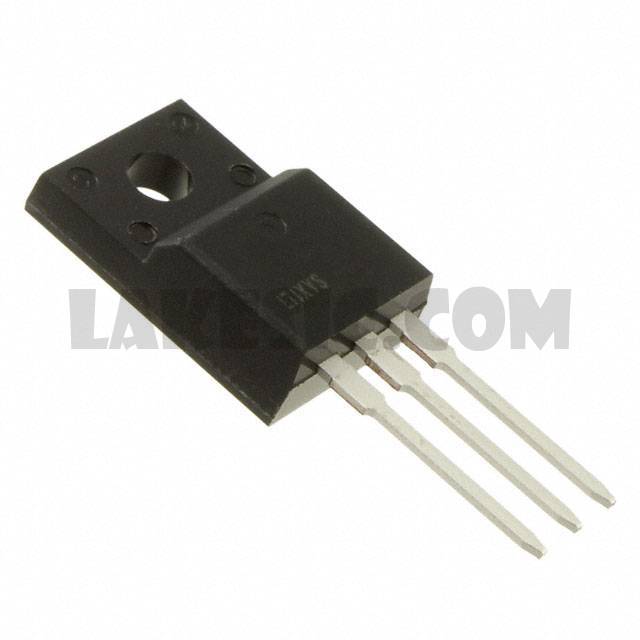

Package / CaseTO-220-3 Full Pack, Isolated Tab

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Standard 300V 10A Through Hole TO-220-3 Full Pack, Isolated Tab

To learn about the specification of DPG20C300PN, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DPG20C300PN with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DPG20C300PN.
We are offering DPG20C300PN for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DPG20C300PN - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	DPG20C300PN
Standard Package	50
Manufacturer	IXYS
Series	HiPerFRED²™
Packaging	Tube
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	300V
Current - Average Rectified (Io) (per Diode)	10A
Voltage - Forward (Vf) (Max) @ If	1.27V @ 10A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	35ns
Current - Reverse Leakage @ Vr	1µA @ 300V
Operating Temperature - Junction	-55°C ~ 175°C
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack, Isolated Tab
Supplier Device Package	TO-220ABFP
