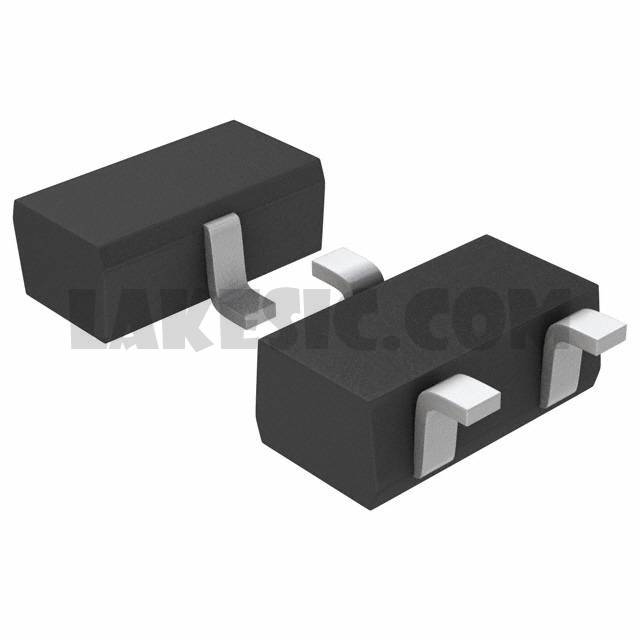

DRC3144T0L

Part NumberDRC3144T0L

ManufacturerPanasonic Electronic Components

DescriptionTRANS PREBIAS NPN 100MW SSSMINI3

DatasheetDRC3144T0L

Package / CaseSOT-723

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionPre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50V 100mA 100mW Surface Mount SSSMini3-F2-B

To learn about the specification of DRC3144T0L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DRC3144T0L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DRC3144T0L.
We are offering DRC3144T0L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DRC3144T0L - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single, Pre-Biased
Datasheet	DRC3144T0L
Standard Package	10000
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN - Pre-Biased
Current - Collector (Ic) (Max)	100mA
Voltage - Collector Emitter Breakdown (Max)	50V
Resistor - Base (R1)	47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	160 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic	250mV @ 500µA, 10mA
Current - Collector Cutoff (Max)	500nA
Power - Max	100mW
Mounting Type	Surface Mount
Package / Case	SOT-723
Supplier Device Package	SSSMini3-F2-B
Base Part Number	DRC3144
