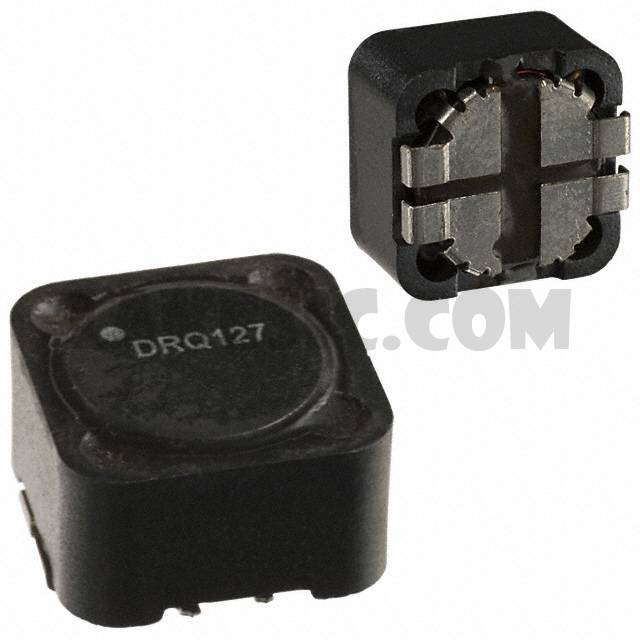

DRQ127-3R3-R

Part NumberDRQ127-3R3-R

ManufacturerEaton - Electronics Division

DescriptionINDUCT ARRAY 2 COIL 2.831UH SMD

DatasheetDRQ Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionShielded 2 Coil Inductor Array 11.32µH Inductance - Connected in Series 2.831µH Inductance - Connected in Parallel 5.67mOhm DC Resistance (DCR) - Parallel 10.4A Nonstandard

To learn about the specification of DRQ127-3R3-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DRQ127-3R3-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DRQ127-3R3-R.
We are offering DRQ127-3R3-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DRQ127-3R3-R - Product Attributes

Categories	Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet	DRQ Series
Standard Package	1
Manufacturer	Eaton - Electronics Division
Series	DRQ
Packaging	Cut Tape (CT)
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	2.831µH
Inductance - Connected In Series	11.32µH
Tolerance	±20%
Current Rating - Parallel	10.4A
Current Rating - Series	5.23A
Current Saturation - Parallel	21.5A
Current Saturation - Series	10.8A
DC Resistance (DCR) - Parallel	5.67mOhm
DC Resistance (DCR) - Series	22.9mOhm
Shielding	Shielded
Ratings	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height	0.315" (8.00mm)
