DS1-25-0003
DS1-25-0003

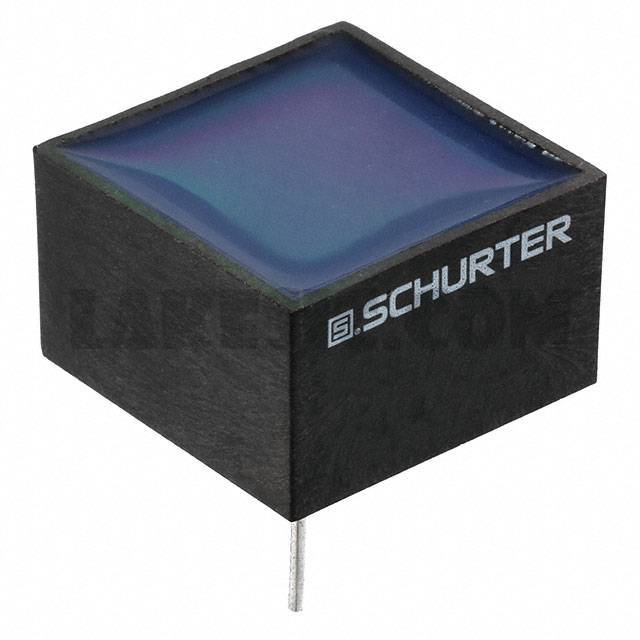

Part Number DS1-25-0003
Description COMMON MODE CHOKE 3.15A 2LN TH
Datasheet DS
Package / Case Radial
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 2 Line Common Mode Choke Through Hole 3.15A DCR 40mOhm
To learn about the specification of DS1-25-0003, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DS1-25-0003 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DS1-25-0003.
We are offering DS1-25-0003 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
DS1-25-0003 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet DS
Standard Package 50
Manufacturer Schurter Inc.
Series DS
Packaging Bulk
Part Status Active
Filter Type -
Number of Lines 2
Current Rating (Max) 3.15A
DC Resistance (DCR) (Max) 40mOhm
Voltage Rating - DC 600V
Voltage Rating - AC -
Operating Temperature -40°C ~ 125°C
Ratings -
Approvals -
Features -
Mounting Type Through Hole
Size / Dimension 0.984" L x 0.984" W (25.00mm x 25.00mm)
Package / Case Radial
