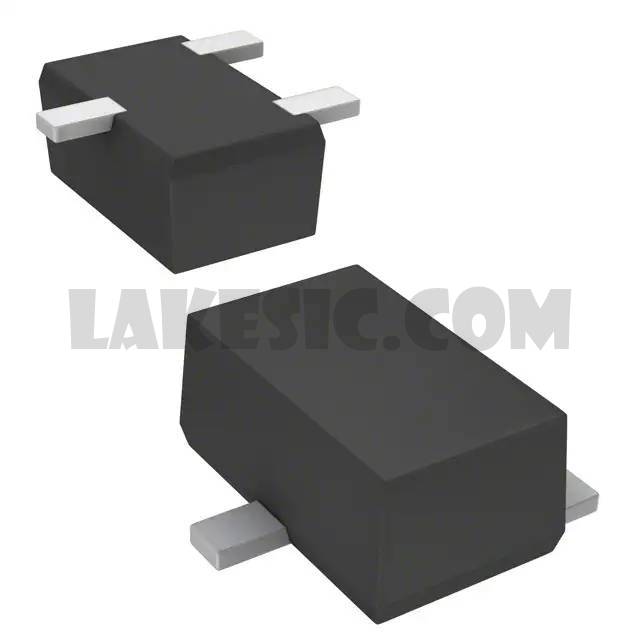

DSA5002S0L

DSA5002S0L

Part NumberDSA5002S0L

ManufacturerPanasonic Electronic Components

DescriptionTRANS PNP 50V 0.5A SMINI3

DatasheetDSA5002

Package / CaseSC-85

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 50V 500mA 130MHz 150mW Surface Mount SMini3-F2-B

To learn about the specification of DSA5002S0L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DSA5002S0L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DSA5002S0L.
We are offering DSA5002S0L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DSA5002S0L - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	DSA5002
Standard Package	3000
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	500mA
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	600mV @ 30mA, 300mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	170 @ 150mA, 10V
Power - Max	150mW
Frequency - Transition	130MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-85
Supplier Device Package	SMini3-F2-B
Base Part Number	DSA5002
