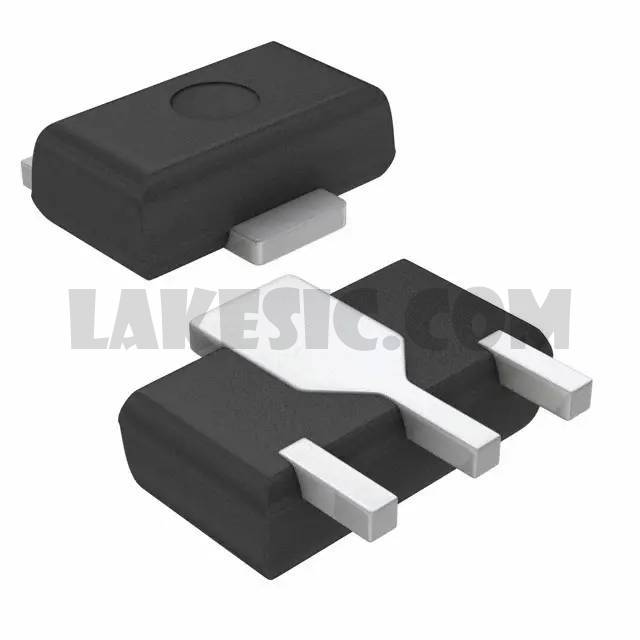

DSC7Q0100L

DSC7Q0100L

Part NumberDSC7Q0100L

ManufacturerPanasonic Electronic Components

DescriptionTRANS NPN DARL 80V 1A MINIP3

DatasheetDSC7Q01

Package / CaseTO-243AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN - Darlington 80V 1A 1W Surface Mount MiniP3-F2-B

To learn about the specification of DSC7Q0100L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DSC7Q0100L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DSC7Q0100L.
We are offering DSC7Q0100L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DSC7Q0100L - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	DSC7Q01
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN - Darlington
Current - Collector (Ic) (Max)	1A
Voltage - Collector Emitter Breakdown (Max)	80V
Vce Saturation (Max) @ Ib, Ic	1.8V @ 1mA, 1A
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	4000 @ 1A, 10V
Power - Max	1W
Frequency - Transition	-
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-243AA
Supplier Device Package	MiniP3-F2-B
Base Part Number	DSC7Q01
