DSS2515M-7B

DSS2515M-7B

Part NumberDSS2515M-7B

ManufacturerDiodes Incorporated

DescriptionTRANS NPN 15V 0.5A DFN1006-3

DatasheetDSS2515M

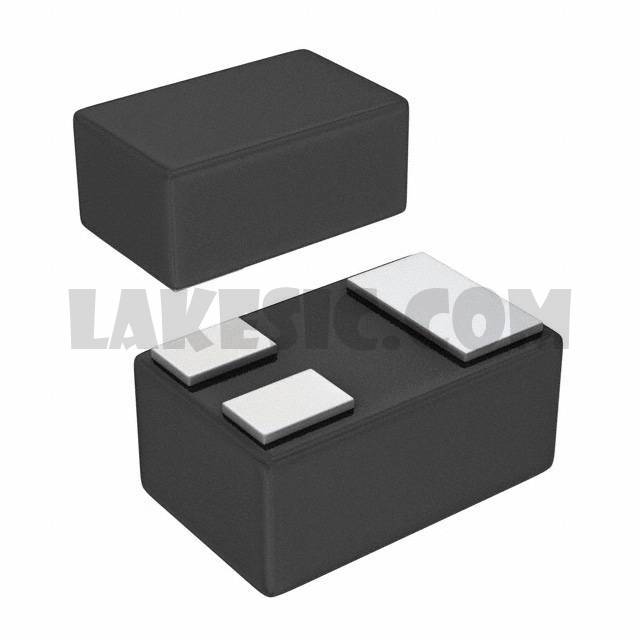

Package / Case3-UFDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 15V 500mA 250MHz 250mW Surface Mount 3-DFN1006 (1.0x0.6)

To learn about the specification of DSS2515M-7B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DSS2515M-7B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DSS2515M-7B.
We are offering DSS2515M-7B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DSS2515M-7B - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	DSS2515M
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	500mA
Voltage - Collector Emitter Breakdown (Max)	15V
Vce Saturation (Max) @ Ib, Ic	250mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	150 @ 100mA, 2V
Power - Max	250mW
Frequency - Transition	250MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	3-UFDFN
Supplier Device Package	3-DFN1006 (1.0x0.6)
Base Part Number	DSS2515M
