DST3060DJF

DST3060DJF

Part NumberDST3060DJF

ManufacturerLittelfuse Inc.

DescriptionDIODE SCHOTTKY 60V PDFN5X6-8L

DatasheetDST3060DJF Datasheet

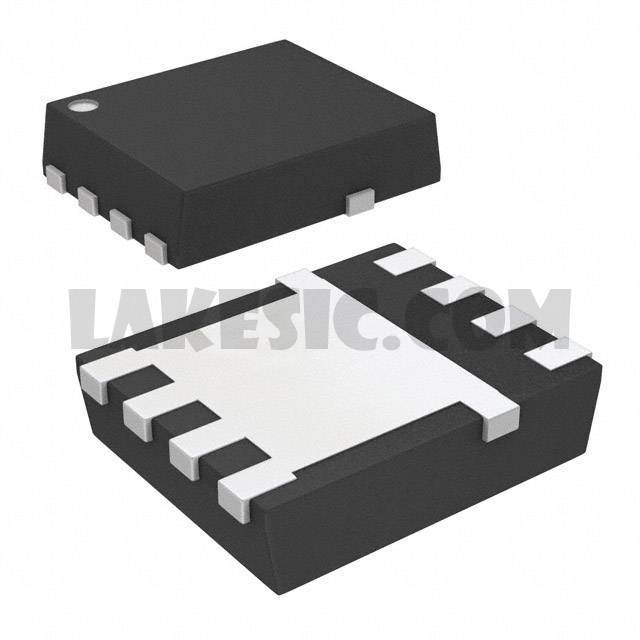

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 60V 30A Surface Mount 8-PDFN (5x6)

To learn about the specification of DST3060DJF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DST3060DJF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DST3060DJF.
We are offering DST3060DJF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DST3060DJF - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	DST3060DJF Datasheet
Standard Package	3000
Manufacturer	Littelfuse Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	60V
Current - Average Rectified (Io)	30A
Voltage - Forward (Vf) (Max) @ If	770mV @ 30A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	6mA @ 60V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	8-PowerVDFN
Supplier Device Package	8-PDFN (5x6)
Operating Temperature - Junction	-55°C ~ 150°C
