DTD143ECHZGT116

Part NumberDTD143ECHZGT116

ManufacturerRohm Semiconductor

Description500MA/50V DIGITAL TRANSISTOR (WI

DatasheetDTD143ECHZG

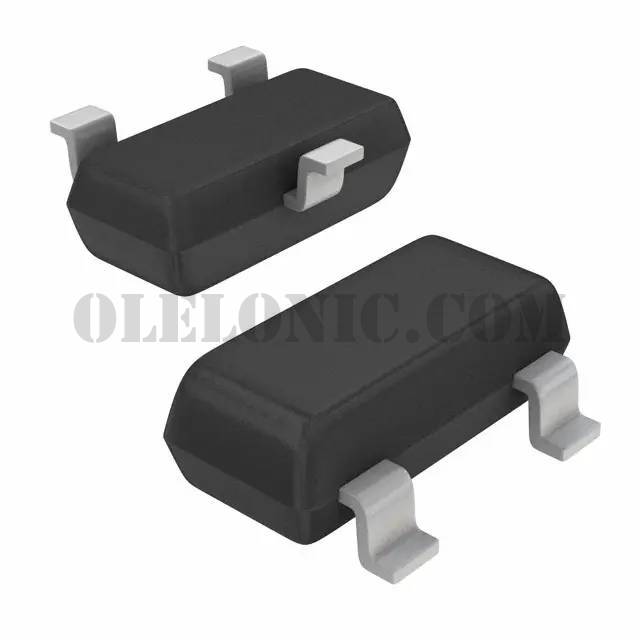

Package / CaseTO-236-3, SC-59, SOT-23-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionPre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased + Diode 500mA 200MHz 200mW Surface Mount SST3

To learn about the specification of DTD143ECHZGT116, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DTD143ECHZGT116 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DTD143ECHZGT116.
We are offering DTD143ECHZGT116 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DTD143ECHZGT116 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single, Pre-Biased
Datasheet	DTD143ECHZG
Standard Package	1
Manufacturer	Rohm Semiconductor
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN - Pre-Biased + Diode
Current - Collector (Ic) (Max)	500mA
Resistor - Base (R1)	4.7 kOhms
Resistor - Emitter Base (R2)	4.7 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	47 @ 50mA, 5V
Vce Saturation (Max) @ Ib, Ic	300mV @ 2.5mA, 50mA
Current - Collector Cutoff (Max)	-
Frequency - Transition	200MHz
Power - Max	200mW
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SST3
