DXT690BP5-13

DXT690BP5-13

Part NumberDXT690BP5-13

ManufacturerDiodes Incorporated

DescriptionTRANS NPN 45V 3A POWERDI5

DatasheetDXT690BP5

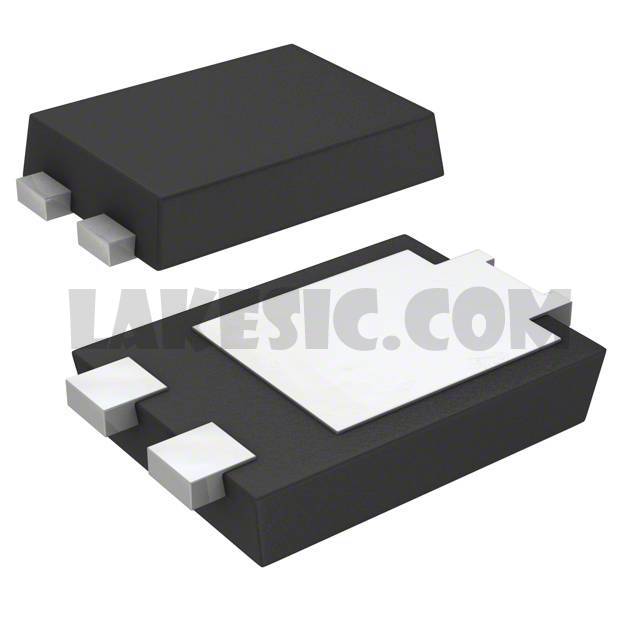

Package / CasePowerDI™ 5

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 45V 3A 150MHz 740mW Surface Mount PowerDI™ 5

To learn about the specification of DXT690BP5-13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DXT690BP5-13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DXT690BP5-13.
We are offering DXT690BP5-13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DXT690BP5-13 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	DXT690BP5
Standard Package	5000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	3A
Voltage - Collector Emitter Breakdown (Max)	45V
Vce Saturation (Max) @ Ib, Ic	350mV @ 150mA, 3A
Current - Collector Cutoff (Max)	20nA
DC Current Gain (hFE) (Min) @ Ic, Vce	150 @ 2A, 2V
Power - Max	740mW
Frequency - Transition	150MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	PowerDI™ 5
Supplier Device Package	PowerDI™ 5
Base Part Number	DXT690
