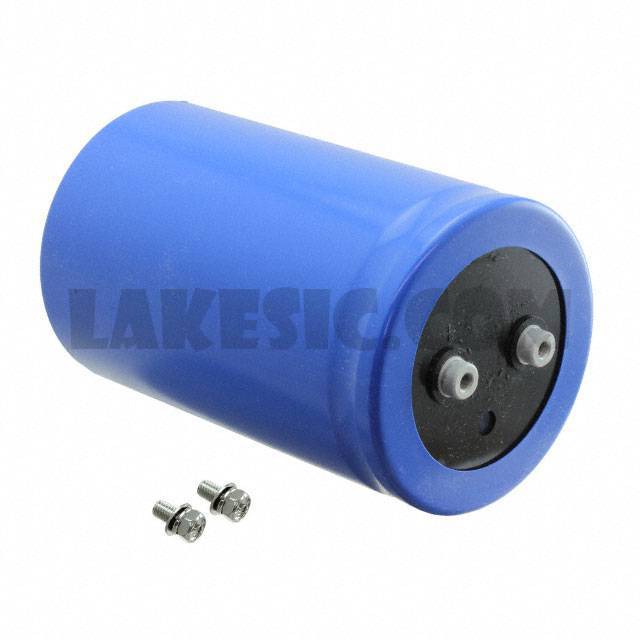

E36D501LGN682MFE3M

Part NumberE36D501LGN682MFE3M

ManufacturerUnited Chemi-Con

DescriptionCAP ALUM 6800UF 20% 500V SCREW

DatasheetU36D/E36D Series

Package / CaseRadial, Can - Screw Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description6800µF 500V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 76mOhm @ 120Hz 2000 Hrs @ 85°C

To learn about the specification of E36D501LGN682MFE3M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add E36D501LGN682MFE3M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of E36D501LGN682MFE3M.
We are offering E36D501LGN682MFE3M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

E36D501LGN682MFE3M - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	U36D/E36D Series
Standard Package	5
Manufacturer	United Chemi-Con
Series	U36D
Packaging	Bulk
Part Status	Active
Capacitance	6800µF
Tolerance	±20%
Voltage - Rated	500V
ESR (Equivalent Series Resistance)	76mOhm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	8.35A @ 120Hz
Ripple Current @ High Frequency	11.69A @ 3kHz
Lead Spacing	1.252" (31.80mm)
Size / Dimension	3.500" Dia (88.90mm)
Height - Seated (Max)	5.625" (142.88mm)
Surface Mount Land Size	-
Mounting Type	Chassis Mount
Package / Case	Radial, Can - Screw Terminals
