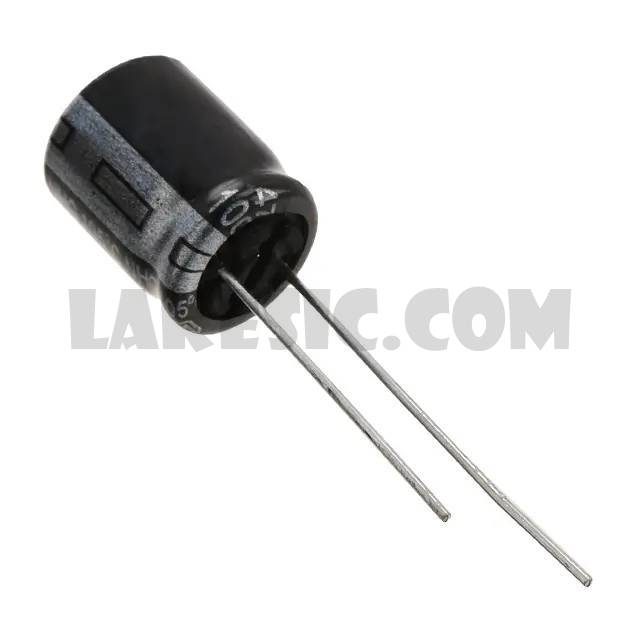

ECA-1AHG102B

Part NumberECA-1AHG102B

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM 1000UF 20% 10V RADIAL

DatasheetNHG Series, Type A

Package / CaseRadial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C

To learn about the specification of ECA-1AHG102B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ECA-1AHG102B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ECA-1AHG102B.
We are offering ECA-1AHG102B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ECA-1AHG102B - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	NHG Series, Type A
Standard Package	500
Manufacturer	Panasonic Electronic Components
Series	NHG
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	1000µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	460mA @ 120Hz
Ripple Current @ High Frequency	529mA @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.532" (13.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
