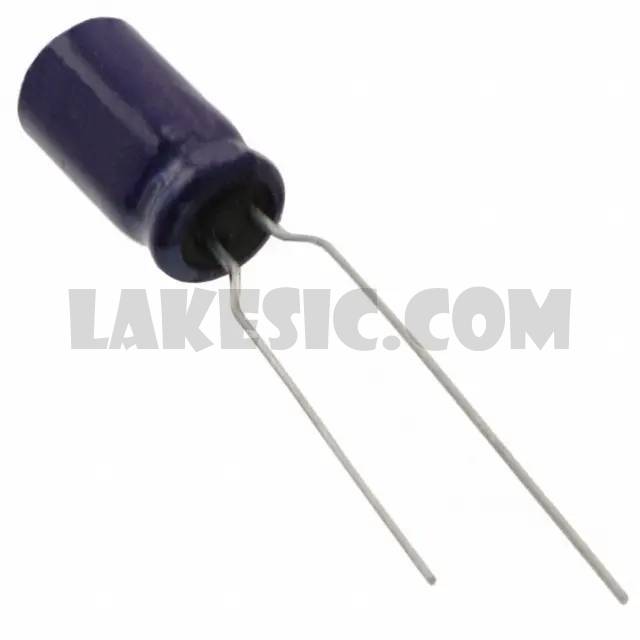

ECA-1EM101

ECA-1EM101

Part NumberECA-1EM101

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM 100UF 20% 25V RADIAL

DatasheetECA-xxM Series, Type A

Package / CaseRadial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description100µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C

To learn about the specification of ECA-1EM101, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ECA-1EM101 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ECA-1EM101.
We are offering ECA-1EM101 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ECA-1EM101 - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ECA-xxM Series, Type A
Standard Package	200
Manufacturer	Panasonic Electronic Components
Series	M
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	180mA @ 120Hz
Ripple Current @ High Frequency	306mA @ 10kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.480" (12.20mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
