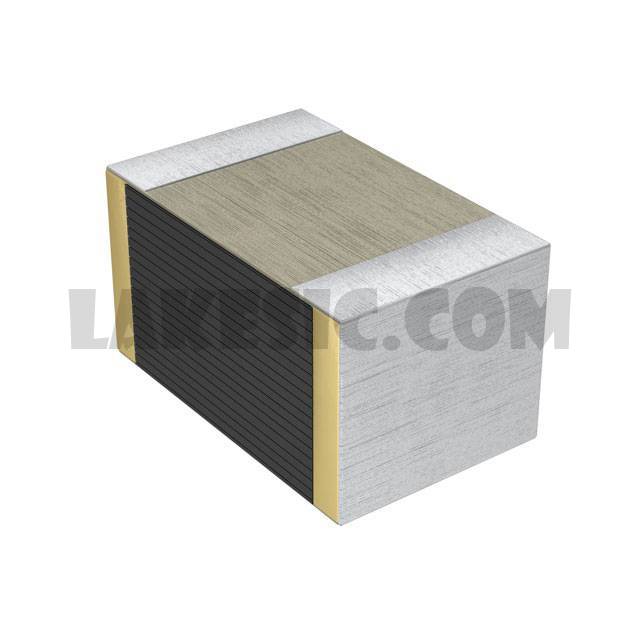

ECH-U1C822JX5

Part NumberECH-U1C822JX5

ManufacturerPanasonic Electronic Components

DescriptionCAP FILM 8200PF 5% 16VDC 0805

DatasheetECH-U1C822JX5 View All Specifications

Package / Case0805 (2012 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description8200pF Film Capacitor 16V Polyphenylene Sulfide (PPS), Metallized - Stacked 0805 (2012 Metric)

To learn about the specification of ECH-U1C822JX5, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ECH-U1C822JX5 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ECH-U1C822JX5.
We are offering ECH-U1C822JX5 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ECH-U1C822JX5 - Product Attributes

Categories	Capacitors / Film Capacitors
Datasheet	ECH-U1C822JX5 View All Specifications
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	ECH-U(X)
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	8200pF
Tolerance	±5%
Voltage Rating - AC	-
Voltage Rating - DC	16V
Dielectric Material	Polyphenylene Sulfide (PPS), Metallized - Stacked
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.051" (1.30mm)
Termination	Solder Pads
Lead Spacing	-
Applications	General Purpose
Ratings	-
Features	-
