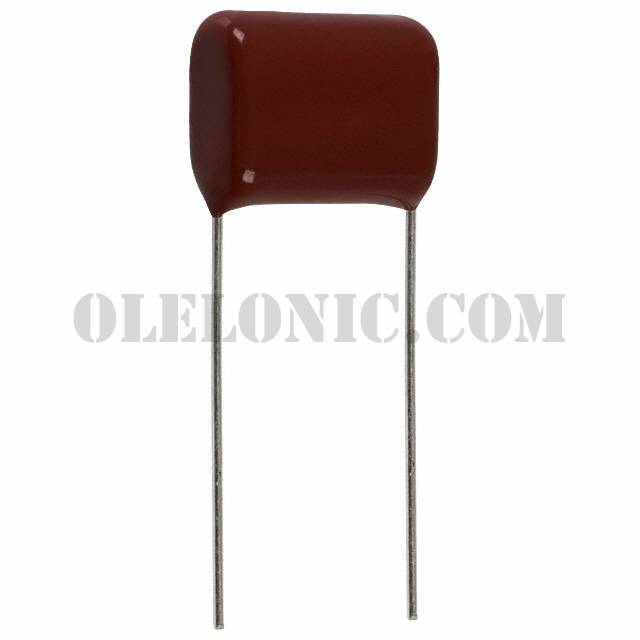

Categories	Capacitors / Film Capacitors
Datasheet	ECQ-E(B) Series Datasheet
Standard Package	100
Manufacturer	Panasonic Electronic Components
Series	ECQ-E(B)
Packaging	Bulk
Part Status	Active
Capacitance	2.7µF
Tolerance	±10%
Voltage Rating - AC	-
Voltage Rating - DC	250V
Dielectric Material	Polyester, Metallized
Operating Temperature	-40°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.819" L x 0.366" W (20.80mm x 9.30mm)
Height - Seated (Max)	0.697" (17.70mm)
Termination	PC Pins
Lead Spacing	0.689" (17.50mm)
Applications	General Purpose
Ratings	-
Features	-
