Categories	Capacitors / Film Capacitors
Datasheet	ECQ-E(B) Series Datasheet
Standard Package	100
Manufacturer	Panasonic Electronic Components
Series	ECQ-E(B)
Packaging	Bulk
Part Status	Active
Capacitance	0.056µF
Tolerance	±5%
Voltage Rating - AC	-
Voltage Rating - DC	250V
Dielectric Material	Polyester, Metallized
Operating Temperature	-40°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.311" L x 0.185" W (7.90mm x 4.70mm)
Height - Seated (Max)	0.343" (8.70mm)
Termination	PC Pins
Lead Spacing	0.197" (5.00mm)
Applications	General Purpose
Ratings	-
Features	-

ECQ-E2334KB	Panasonic Electronic Components, 0.33µF Film Capacitor 250V Polyester, Metallized Radial, ECQ-E(B)	View
ECQ-E2394KB	Panasonic Electronic Components, 0.39µF Film Capacitor 250V Polyester, Metallized Radial, ECQ-E(B)	View
ECQ-E2155KB	Panasonic Electronic Components, 1.5µF Film Capacitor 250V Polyester, Metallized Radial, ECQ-E(B)	View
ECQ-E2125KB	Panasonic Electronic Components, 1.2µF Film Capacitor 250V Polyester, Metallized Radial, ECQ-E(B)	View
ECQ-E2273KB	Panasonic Electronic Components, 0.027µF Film Capacitor 250V Polyester, Metallized Radial, ECQ-E(B)	View
ECQ-E2123JB	Panasonic Electronic Components, 0.012µF Film Capacitor 250V Polyester, Metallized Radial, ECQ-E(B)	View
ECQ-E2395JB	Panasonic Electronic Components, 3.9µF Film Capacitor 250V Polyester, Metallized Radial, ECQ-E(B)	View
ECQ-E2684KB	Panasonic Electronic Components, 0.68µF Film Capacitor 250V Polyester, Metallized Radial, ECQ-E(B)	View
ECQ-E2273JB	Panasonic Electronic Components, 0.027µF Film Capacitor 250V Polyester, Metallized Radial, ECQ-E(B)	View
ECQ-E2823JB	Panasonic Electronic Components, 0.082µF Film Capacitor 250V Polyester, Metallized Radial, ECQ-E(B)	View
ECQ-E2183KB	Panasonic Electronic Components, 0.018µF Film Capacitor 250V Polyester, Metallized Radial, ECQ-E(B)	View
ECQ-E2564JB	Panasonic Electronic Components, 0.56µF Film Capacitor 250V Polyester, Metallized Radial, ECQ-E(B)	View

ECQ-E2563JB

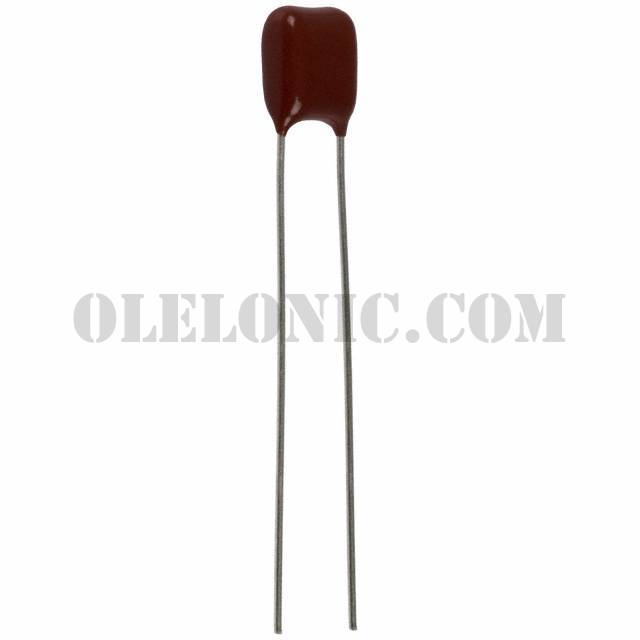

Part NumberECQ-E2563JB
