ECS-100AX-020

ECS-100AX-020

Part NumberECS-100AX-020

ManufacturerECS Inc.

DescriptionXTAL OSC XO 2.0000MHZ TTL TH

DatasheetECS-100X Series

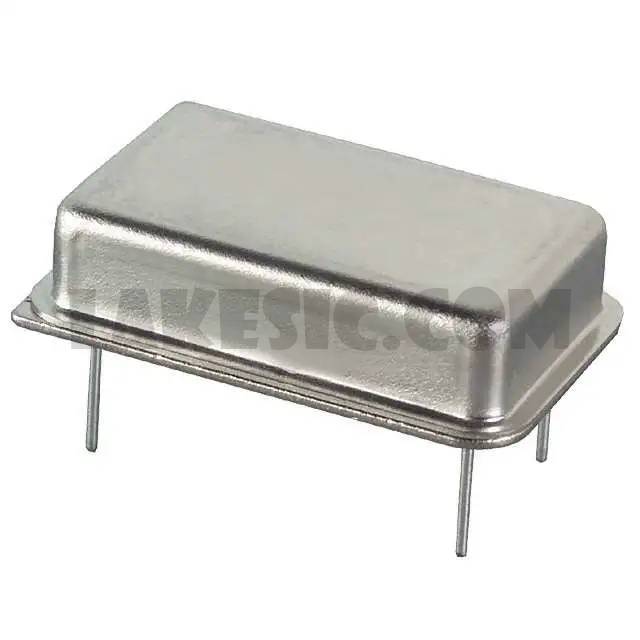

Package / Case14-DIP, 4 Leads (Full Size, Metal Can)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2MHz XO (Standard) TTL Oscillator 5V 14-DIP, 4 Leads (Full Size, Metal Can)

To learn about the specification of ECS-100AX-020, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ECS-100AX-020 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ECS-100AX-020.
We are offering ECS-100AX-020 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ECS-100AX-020 - Product Attributes

Categories	Crystals, Oscillators, Resonators / Oscillators
Datasheet	ECS-100X Series
Standard Package	25
Manufacturer	ECS Inc.
Series	ECS-100X
Packaging	Bulk
Part Status	Active
Base Resonator	Crystal
Type	XO (Standard)
Frequency	2MHz
Function	-
Output	TTL
Voltage - Supply	5V
Frequency Stability	±100ppm
Absolute Pull Range (APR)	-
Operating Temperature	0°C ~ 70°C
Spread Spectrum Bandwidth	-
Current - Supply (Max)	15mA
Ratings	-
Mounting Type	Through Hole
Package / Case	14-DIP, 4 Leads (Full Size, Metal Can)
Size / Dimension	0.821" L x 0.520" W (20.86mm x 13.20mm)
Height - Seated (Max)	0.200" (5.08mm)
Current - Supply (Disable) (Max)	-
