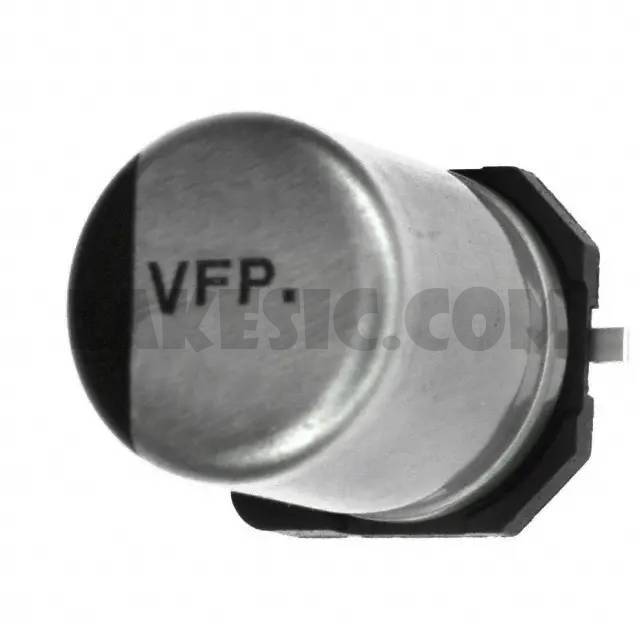

EEE-FPE561UAP

Part NumberEEE-FPE561UAP

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM 560UF 20% 25V SMD

DatasheetEEE-FPE561UAP View All Specifications

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description560µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 80mOhm @ 100kHz 2000 Hrs @ 105°C

To learn about the specification of EEE-FPE561UAP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EEE-FPE561UAP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EEE-FPE561UAP.
We are offering EEE-FPE561UAP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EEE-FPE561UAP - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	EEE-FPE561UAP View All Specifications
Standard Package	500
Manufacturer	Panasonic Electronic Components
Series	FP
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	80mOhm @ 100kHz
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	552.5mA @ 120Hz
Ripple Current @ High Frequency	850mA @ 100kHz
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.402" (10.20mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
