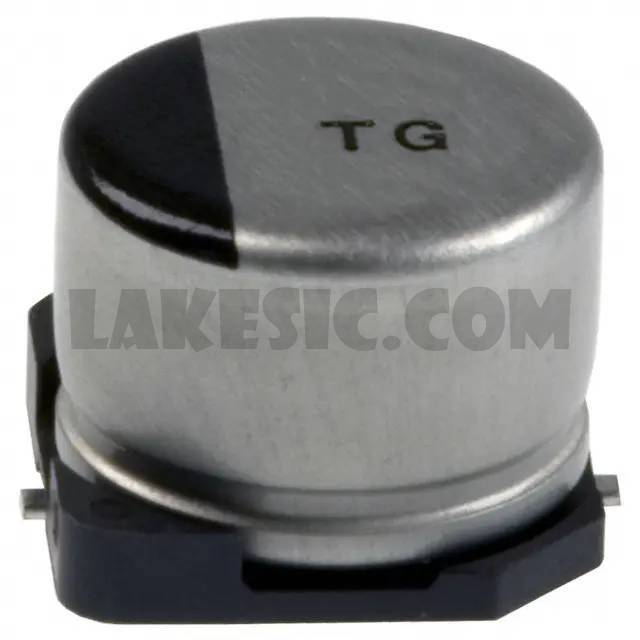

EEE-TG1E101UP

Part NumberEEE-TG1E101UP

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM 100UF 20% 25V SMD

DatasheetEEE-TG1E101UP View All Specifications

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description100µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1Ohm @ 100kHz 1000 Hrs @ 125°C

To learn about the specification of EEE-TG1E101UP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EEE-TG1E101UP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EEE-TG1E101UP.
We are offering EEE-TG1E101UP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EEE-TG1E101UP - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	EEE-TG1E101UP View All Specifications
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	TG
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	1Ohm @ 100kHz
Lifetime @ Temp.	1000 Hrs @ 125°C
Operating Temperature	-40°C ~ 125°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	65mA @ 120Hz
Ripple Current @ High Frequency	100mA @ 100kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.244" (6.20mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
