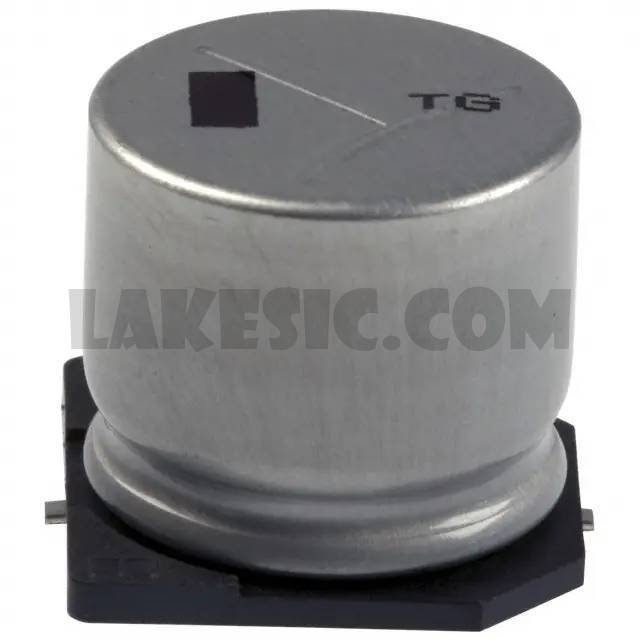

EEV-TG1H681M

Part NumberEEV-TG1H681M

ManufacturerPanasonic Electronic Components

DescriptionCAP ALUM 680UF 20% 50V SMD

DatasheetTG Series V Type

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description680µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 140mOhm @ 100kHz 2000 Hrs @ 125°C

To learn about the specification of EEV-TG1H681M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EEV-TG1H681M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EEV-TG1H681M.
We are offering EEV-TG1H681M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EEV-TG1H681M - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TG Series V Type
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	TG
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	680µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	140mOhm @ 100kHz
Lifetime @ Temp.	2000 Hrs @ 125°C
Operating Temperature	-40°C ~ 125°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	617.5mA @ 120Hz
Ripple Current @ High Frequency	950mA @ 100kHz
Lead Spacing	-
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	0.650" (16.50mm)
Surface Mount Land Size	0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
