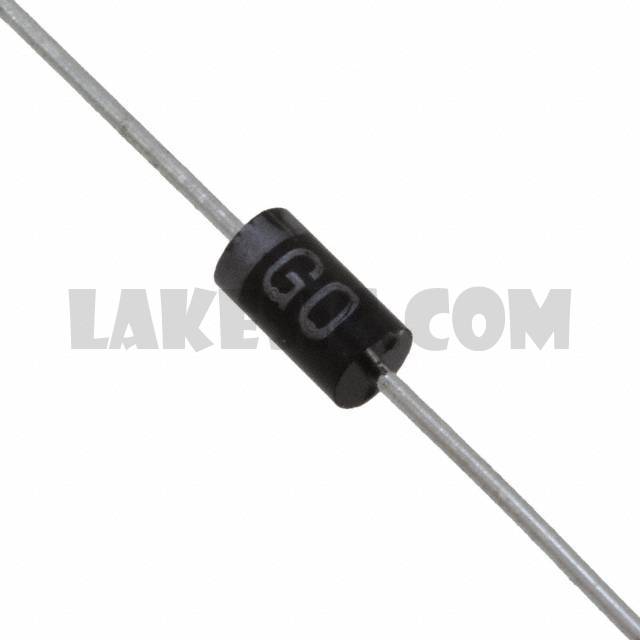

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	EG01
Standard Package	1
Manufacturer	Sanken
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	400V
Current - Average Rectified (Io)	700mA
Voltage - Forward (Vf) (Max) @ If	2V @ 700mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	100ns
Current - Reverse Leakage @ Vr	50µA @ 400V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	Axial
Supplier Device Package	-
Operating Temperature - Junction	-40°C ~ 150°C
