Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	EGP20A - EGP20K
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	1.7V @ 2A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	75ns
Current - Reverse Leakage @ Vr	5µA @ 600V
Capacitance @ Vr, F	45pF @ 4V, 1MHz
Mounting Type	Through Hole

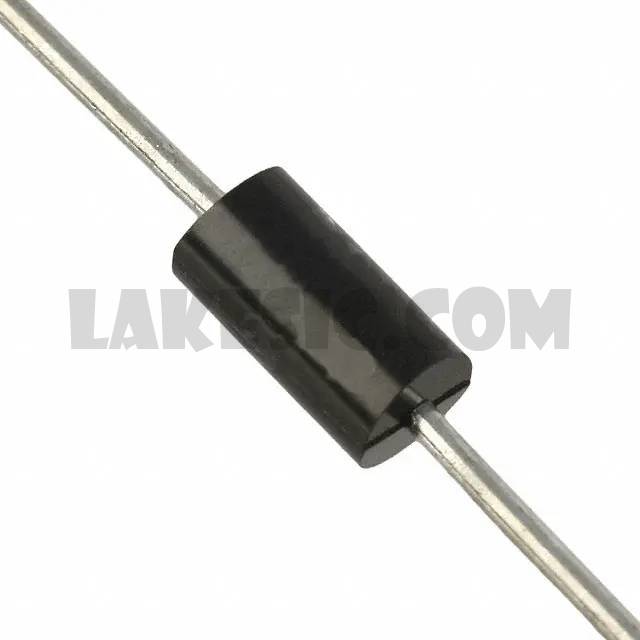

Package / Case	DO-204AC, DO-15, Axial
Supplier Device Package	DO-15
Operating Temperature - Junction	-65°C ~ 150°C
Base Part Number	EGP20J
