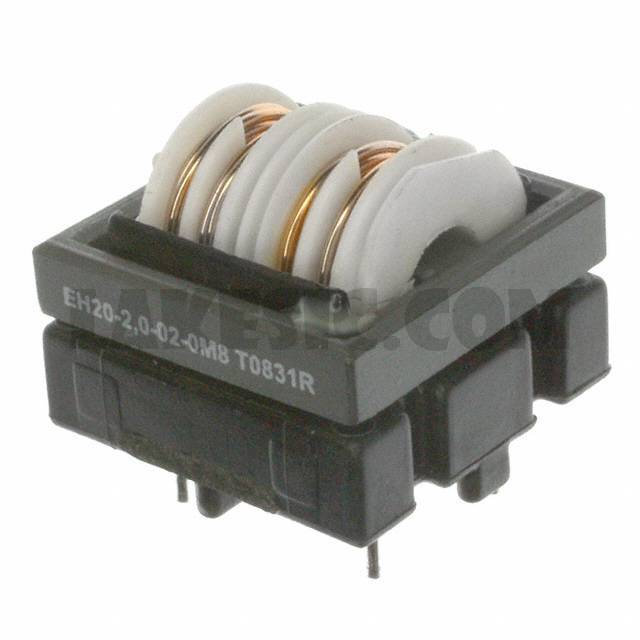

EH20-2.0-02-0M8
EH20-2.0-02-0M8
Part Number EH20-2.0-02-0M8 Description CMC 820UH 2A 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 820µH @ 10kHz 2 Line Common Mode Choke Through Hole 2A DCR 38mOhm (Typ)
To learn about the specification of EH20-2.0-02-0M8, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EH20-2.0-02-0M8 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EH20-2.0-02-0M8.
We are offering EH20-2.0-02-0M8 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
EH20-2.0-02-0M8 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet EV,EH Series Standard Package 500 Manufacturer Schaffner EMC Inc. Series EH Packaging Tube Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 820µH @ 10kHz Current Rating (Max) 2A DC Resistance (DCR) (Max) 38mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -25°C ~ 100°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 0.827" L x 0.827" W (21.00mm x 21.00mm) Height (Max) 0.740" (18.80mm) Package / Case Horizontal, 4 PC Pin
