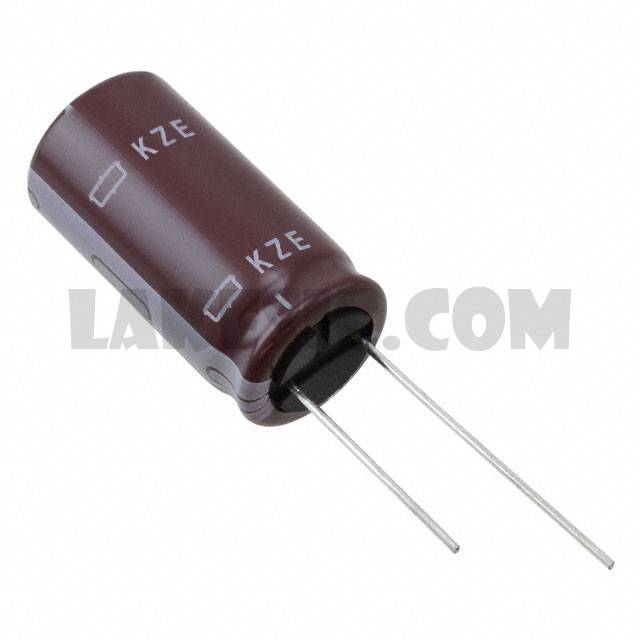

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	KZE Series
Standard Package	500
Manufacturer	United Chemi-Con
Series	KZE
Packaging	Bulk
Part Status	Active
Capacitance	470µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	925mA @ 120Hz
Impedance	32 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.319" (33.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

EKZE100ELL102MJ16S	United Chemi-Con, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, KZE	View
EKZE160ELL222MK25S	United Chemi-Con, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, KZE	View
EKZE100ELL122MJ20S	United Chemi-Con, 1200µF 10V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, KZE	View
EKZE630ELL182MM40S	United Chemi-Con, 1800µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, KZE	View
EKZE100ELL392MK30S	United Chemi-Con, 3900µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, KZE	View
EKZE250ELL272ML25S	United Chemi-Con, 2700µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, KZE	View
EKZE630ELL391MK25S	United Chemi-Con, 390µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, KZE	View
EKZE500ELL821ML20S	United Chemi-Con, 820µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, KZE	View
EKZE250ETD471MJ16S	United Chemi-Con, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, KZE	View
EKZE100ELL101ME11D	United Chemi-Con, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, KZE	View
EKZE100ELL222MK20S	United Chemi-Con, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, KZE	View
EKZE350ELL471MJ20S	United Chemi-Con, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, KZE	View

EKZE101ELL471MLN3S

Part NumberEKZE101ELL471MLN3S
