ELB-2A501

Part NumberELB-2A501

ManufacturerPanasonic Electronic Components

DescriptionRF FILTER BAND PASS 5.4GHZ 0805

DatasheetELB-2A501

Package / Case0805 (2012 Metric), 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description5.4GHz Center Frequency Band Pass RF Filter (Radio Frequency) 1GHz Bandwidth 1.2dB 0805 (2012 Metric), 4 PC Pad

To learn about the specification of ELB-2A501, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ELB-2A501 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ELB-2A501.
We are offering ELB-2A501 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ELB-2A501 - Product Attributes

Categories

Filters / RF Filters

Datasheet

ELB-2A501

Standard Package

Manufacturer

Panasonic Electronic Components

Series

ELB2A

Packaging

Cut Tape (CT)

Part Status

Obsolete

Frequency

5.4GHz Center

Bandwidth

1GHz

Filter Type

Band Pass

Ripple

1dB

Insertion Loss

1.2dB

Mounting Type

Surface Mount

Package / Case

0805 (2012 Metric), 4 PC Pad

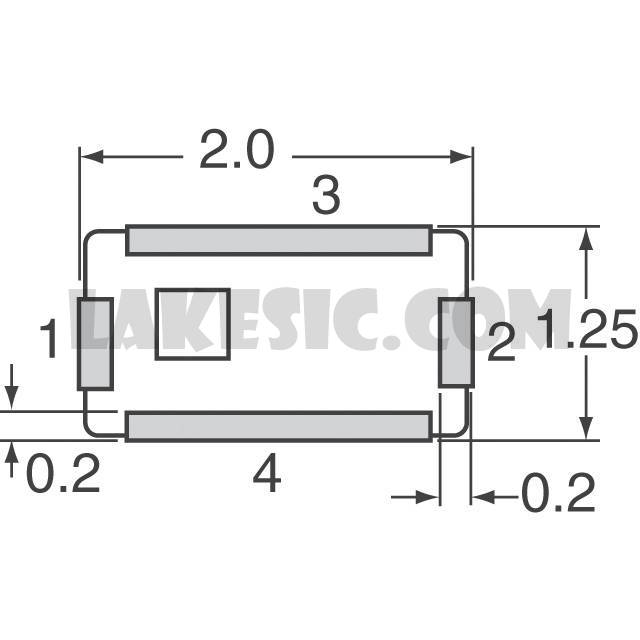

Size / Dimension

0.079" L x 0.049" W (2.00mm x 1.25mm)

Height (Max)

0.028" (0.70mm)
