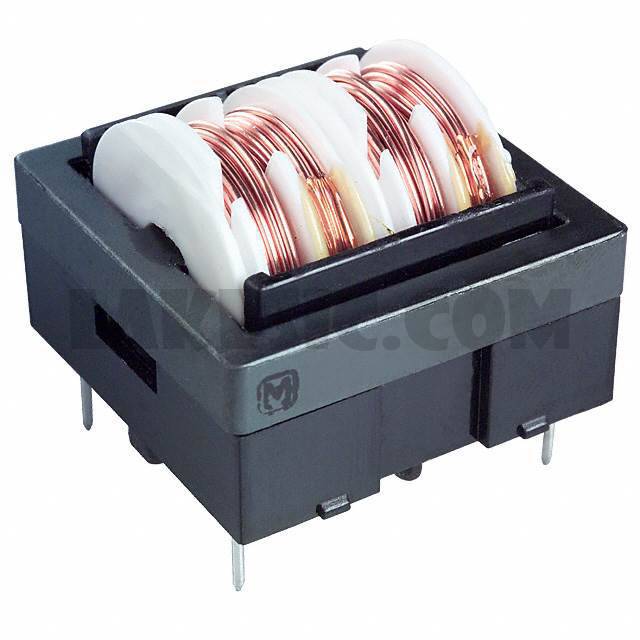

ELF-18D617F

Part NumberELF-18D617F

ManufacturerPanasonic Electronic Components

DescriptionCMC 2.2MH 2.8A 2LN TH

DatasheetELF Series, H, F, M

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.2mH @ 1kHz 2 Line Common Mode Choke Through Hole 2.8A DCR 58mOhm (Typ)

To learn about the specification of ELF-18D617F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ELF-18D617F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ELF-18D617F.
We are offering ELF-18D617F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ELF-18D617F - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

ELF Series, H, F, M

Standard Package

200

Manufacturer

Panasonic Electronic Components

Series

Packaging

Bulk

Part Status

Obsolete

Filter Type

Number of Lines

Inductance @ Frequency

2.2mH @ 1kHz

Current Rating (Max)

2.8A

DC Resistance (DCR) (Max)

58mOhm (Typ)

Voltage Rating - DC

Voltage Rating - AC

250V

Operating Temperature

-20°C ~ 105°C

Ratings

Approvals

Features

Mounting Type

Through Hole

Size / Dimension

1.122" L x 1.142" W (28.50mm x 29.00mm)

Height (Max)

0.925" (23.50mm)

Package / Case

Vertical, 4 PC Pin
