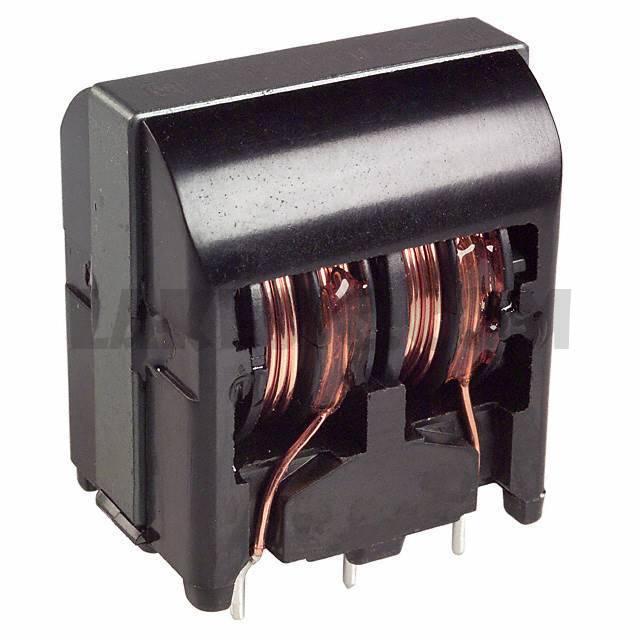

ELF-18D850R

Part NumberELF-18D850R

ManufacturerPanasonic Electronic Components

DescriptionCOMMON MODE CHOKE 800MA 2LN TH

DatasheetV Series

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Through Hole 800mA DCR 892mOhm (Typ)

To learn about the specification of ELF-18D850R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ELF-18D850R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ELF-18D850R.
We are offering ELF-18D850R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ELF-18D850R - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

V Series

Standard Package

Manufacturer

Panasonic Electronic Components

Series

Packaging

Bulk

Part Status

Obsolete

Filter Type

Number of Lines

Current Rating (Max)

800mA

DC Resistance (DCR) (Max)

892mOhm (Typ)

Voltage Rating - DC

Voltage Rating - AC

Operating Temperature

Ratings

Approvals

Features

Mounting Type

Through Hole

Size / Dimension

1.417" L x 1.004" W (36.00mm x 25.50mm)

Height (Max)

1.575" (40.00mm)

Package / Case

Vertical, 4 PC Pin
