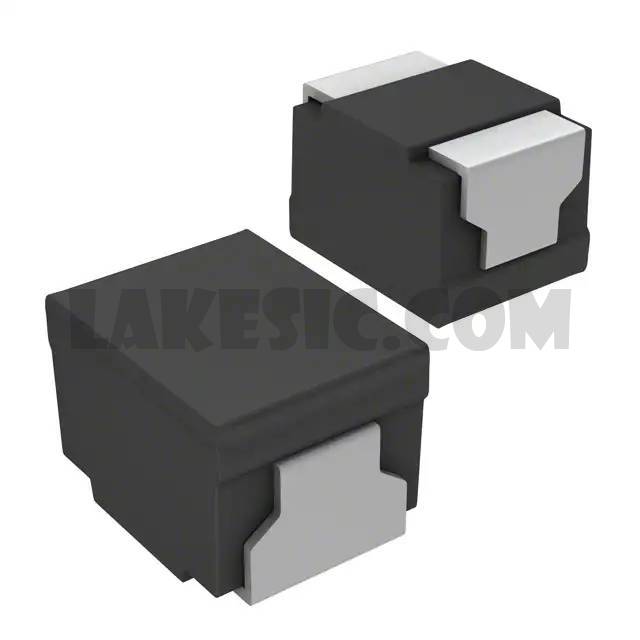

ELJ-DA820JF

Part NumberELJ-DA820JF

ManufacturerPanasonic Electronic Components

DescriptionFIXED IND 82UH 80MA 10 OHM SMD

DatasheetDA, FA Series Datasheet

Package / Case1210 (3225 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description82µH Unshielded Wirewound Inductor 80mA 10Ohm Max 1210 (3225 Metric)

To learn about the specification of ELJ-DA820JF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ELJ-DA820JF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ELJ-DA820JF.
We are offering ELJ-DA820JF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ELJ-DA820JF - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

DA, FA Series Datasheet

Standard Package

Manufacturer

Panasonic Electronic Components

Series

Packaging

Cut Tape (CT)

Part Status

Obsolete

Type

Wirewound

Material - Core

Inductance

82µH

Tolerance

±5%

Current Rating (Amps)

80mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

10Ohm Max

Q @ Freq

19 @ 2.52MHz

Frequency - Self Resonant

7MHz

Ratings

Operating Temperature

-20°C ~ 85°C

Inductance Frequency - Test

2.52MHz

Mounting Type

Surface Mount

Package / Case

1210 (3225 Metric)

Supplier Device Package

Size / Dimension

0.126" L x 0.098" W (3.20mm x 2.50mm)

Height - Seated (Max)

0.094" (2.40mm)
