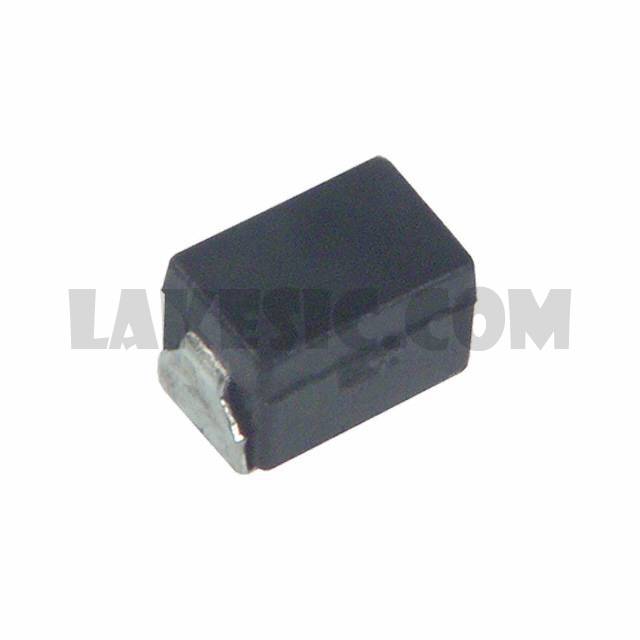

ELJ-PC2R2MF

Part NumberELJ-PC2R2MF

ManufacturerPanasonic Electronic Components

DescriptionFIXED IND 2.2UH 390MA 650 MOHM

DatasheetELJ-PF, PE, PC, PA, PB, LC, LA Series

Package / Case1008 (2520 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.2µH Unshielded Wirewound Inductor 390mA 650mOhm Max 1008 (2520 Metric)

To learn about the specification of ELJ-PC2R2MF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ELJ-PC2R2MF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ELJ-PC2R2MF.
We are offering ELJ-PC2R2MF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ELJ-PC2R2MF - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

ELJ-PF, PE, PC, PA, PB, LC, LA Series

Standard Package

Manufacturer

Panasonic Electronic Components

Series

Packaging

Cut Tape (CT)

Part Status

Obsolete

Type

Wirewound

Material - Core

Inductance

2.2µH

Tolerance

±20%

Current Rating (Amps)

390mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

650mOhm Max

Q @ Freq

10 @ 7.96MHz

Frequency - Self Resonant

65MHz

Ratings

Operating Temperature

-20°C ~ 85°C

Inductance Frequency - Test

7.96MHz

Mounting Type

Surface Mount

Package / Case

1008 (2520 Metric)

Supplier Device Package

1008 (2520 Metric)

Size / Dimension

0.098" L x 0.079" W (2.50mm x 2.00mm)

Height - Seated (Max)

0.071" (1.80mm)
