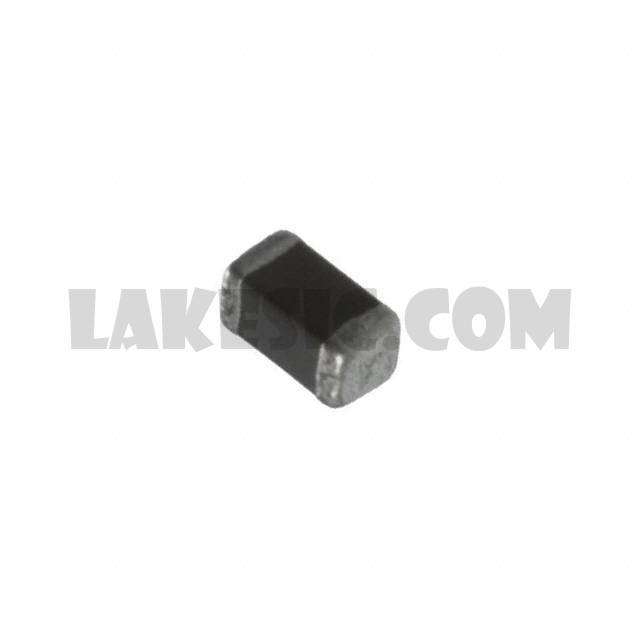

ELJ-RF2N2ZFB

Part NumberELJ-RF2N2ZFB

ManufacturerPanasonic Electronic Components

DescriptionFIXED IND 2.2NH 400MA 90 MOHM

DatasheetELJ-RF, RE, ND, NC, NA Series

Package / Case0402 (1005 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.2nH Unshielded Multilayer Inductor 400mA 90mOhm Max 0402 (1005 Metric)

To learn about the specification of ELJ-RF2N2ZFB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ELJ-RF2N2ZFB with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ELJ-RF2N2ZFB.
We are offering ELJ-RF2N2ZFB for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ELJ-RF2N2ZFB - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

ELJ-RF, RE, ND, NC, NA Series

Standard Package

Manufacturer

Panasonic Electronic Components

Series

Packaging

Cut Tape (CT)

Part Status

Obsolete

Type

Multilayer

Material - Core

Non-Magnetic

Inductance

2.2nH

Tolerance

±0.2nH

Current Rating (Amps)

400mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

90mOhm Max

Q @ Freq

8 @ 100MHz

Frequency - Self Resonant

6GHz

Ratings

Operating Temperature

-20°C ~ 85°C

Inductance Frequency - Test

100MHz

Mounting Type

Surface Mount

Package / Case

0402 (1005 Metric)

Supplier Device Package

0402 (1005 Metric)

Size / Dimension

0.039" L x 0.020" W (1.00mm x 0.50mm)

Height - Seated (Max)

0.022" (0.55mm)
