Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	ELL-ATV Series Datasheet
Standard Package	500
Manufacturer	Panasonic Electronic Components
Series	V
Packaging	Tape & Reel (TR)
Part Status	Last Time Buy
Type	Wirewound
Material - Core	Ferrite
Inductance	27µH
Tolerance	±20%
Current Rating (Amps)	2A
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	56mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.177" (4.50mm)

UVK105CG1R3BW-F	Taiyo Yuden, 1.3pF ±0.1pF 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric),	View
ELL-ATV1R5N	Panasonic Electronic Components, 1.5µH Shielded Wirewound Inductor 6.7A 5.3mOhm Nonstandard,	View
ELL-ATV821M	Panasonic Electronic Components, 820µH Shielded Wirewound Inductor 340mA 1.27Ohm Nonstandard,	View
UVK105CG3R9JW-F	Taiyo Yuden, 3.9pF ±5% 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric),	View
ELL-CTV331M	Panasonic Electronic Components, 330µH Shielded Wirewound Inductor 660mA 500mOhm Nonstandard,	View
UVK105CG1R1BW-F	Taiyo Yuden, 1.1pF ±0.1pF 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric),	View
UVK105CG4R3JW-F	Taiyo Yuden, 4.3pF ±5% 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric),	View
UVK105CG0R9BW-F	Taiyo Yuden, 0.9pF ±0.1pF 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric),	View
ELL-ATV221M	Panasonic Electronic Components, 220µH Shielded Wirewound Inductor 700mA 360mOhm Nonstandard,	View
ELL-ATV181M	Panasonic Electronic Components, 180µH Shielded Wirewound Inductor 750mA 320mOhm Nonstandard,	View
ELL-ATV120M	Panasonic Electronic Components, 12µH Shielded Wirewound Inductor 2.9A 25mOhm Nonstandard,	View
ELL-ATV180M	Panasonic Electronic Components, 18µH Shielded Wirewound Inductor 2.5A 38mOhm Nonstandard,	View

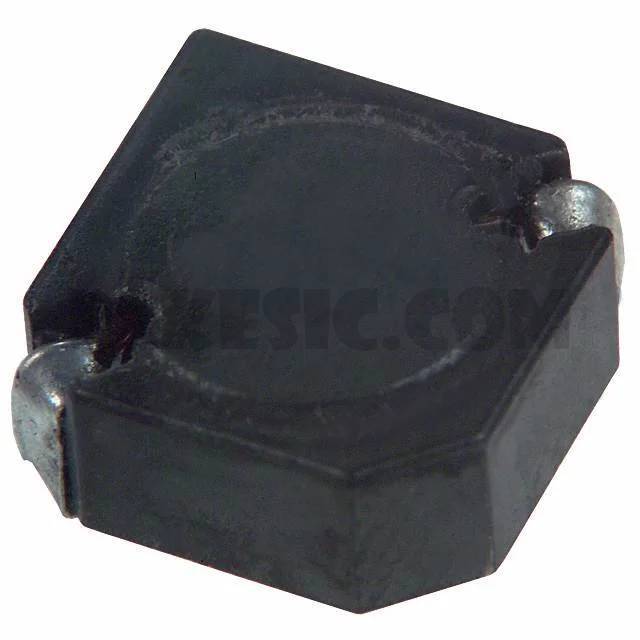

ELL-ATV270M
