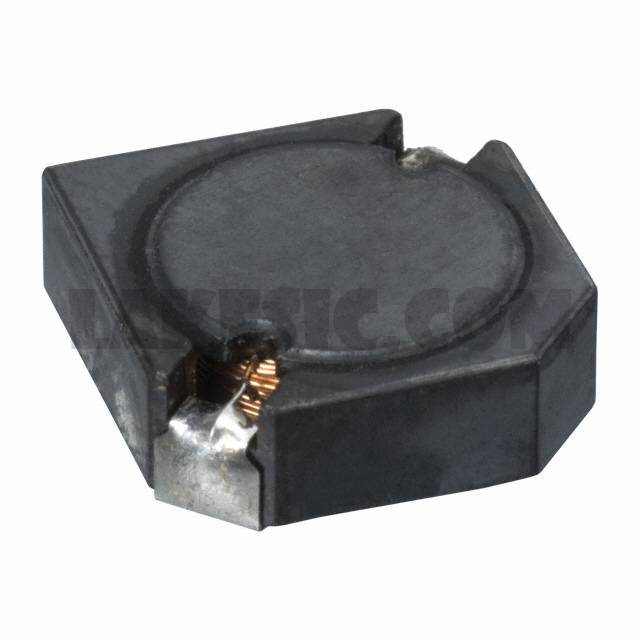

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	ELL-CTV Series
Standard Package	500
Manufacturer	Panasonic Electronic Components
Series	V
Packaging	Tape & Reel (TR)
Part Status	Last Time Buy
Type	Wirewound
Material - Core	Ferrite
Inductance	120µH
Tolerance	±20%
Current Rating (Amps)	1.1A
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	190mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max)	0.177" (4.50mm)
