Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single

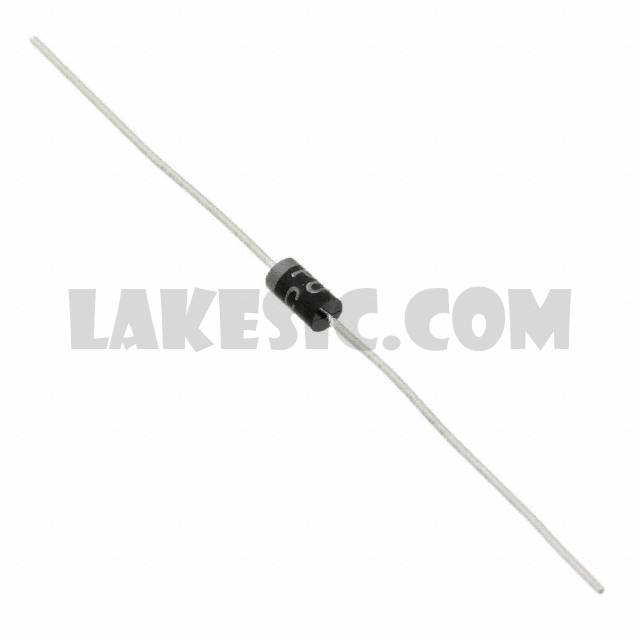

Datasheet	EP01C
Standard Package	2000
Manufacturer	Sanken
Series	-
Packaging	Tape & Box (TB)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1000V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	4V @ 200mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	200ns
Current - Reverse Leakage @ Vr	5µA @ 1000V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	Axial
Supplier Device Package	-
Operating Temperature - Junction	-40°C ~ 150°C
