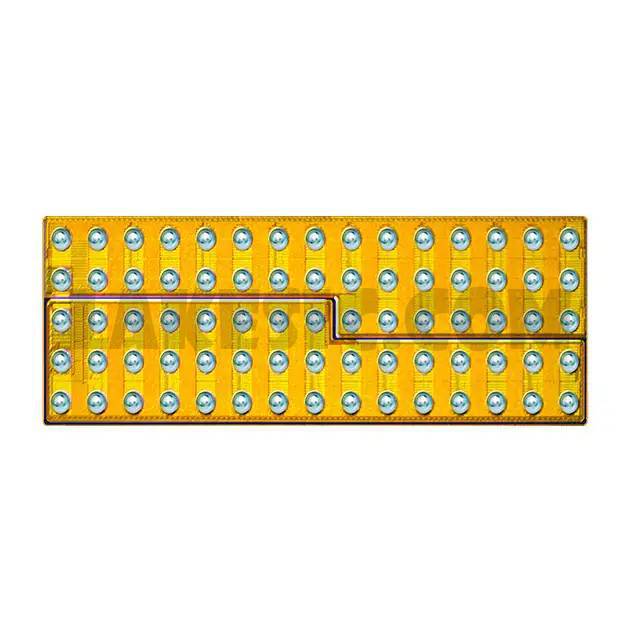

EPC2104

Part NumberEPC2104

ManufacturerEPC

DescriptionGAN TRANS SYMMETRICAL HALF BRIDG

DatasheetEPC2104 Datasheet

Package / CaseDie

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 100V 23A Surface Mount Die

To learn about the specification of EPC2104, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EPC2104 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of EPC2104.
We are offering EPC2104 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

EPC2104 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	EPC2104 Datasheet
Standard Package	1
Manufacturer	EPC
Series	eGaN®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	23A
Rds On (Max) @ Id, Vgs	6.3mOhm @ 20A, 5V
Vgs(th) (Max) @ Id	2.5V @ 5.5mA
Gate Charge (Qg) (Max) @ Vgs	7nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds	800pF @ 50V
Power - Max	-
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	Die
Supplier Device Package	Die
