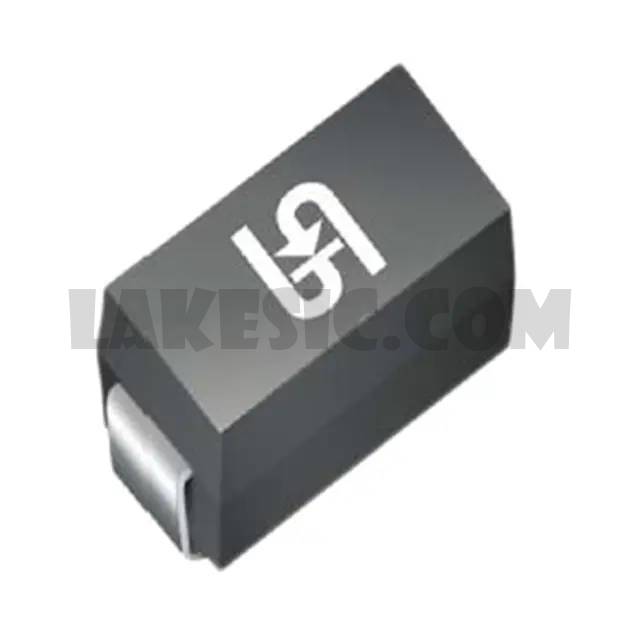

ES2AAHR3G


ES2AAHR3G

Part NumberES2AAHR3G

Manufacturer

Description

Datasheet

Package / CaseDO-214AC, SMA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

ES2AAHR3G - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet
Standard Package1
ManufacturerTaiwan Semiconductor Corporation
Series-
PackagingCut Tape (CT)
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)50V
Current - Average Rectified (Io)2A
Voltage - Forward (Vf) (Max) @ If950mV @ 2A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)35ns
Current - Reverse Leakage @ Vr10µA @ 50V
Capacitance @ Vr, F25pF @ 4V, 1MHz
Mounting TypeSurface Mount
Package / CaseDO-214AC, SMA
Supplier Device PackageDO-214AC (SMA)
Operating Temperature - Junction-55°C ~ 150°C
